EM 001 – PMSM 2D torque analysis

In this demo, we simulate a 2D cross-section of a Permanent Magnet Synchronous Motor (PMSM) to analyze how torque varies with the mechanical angle. The goal is to demonstrate how to set up the simulation efficiently using Allsolve.

PMSMs are widely used in electric vehicles and automation due to their high efficiency and precise control. Simulating their behavior helps:

  • Optimize torque ripple and smoothness
  • Accelerate motor design through virtual prototyping

An additional goal of this demo is to illustrate the modifications required to support 2D simulations.

Model definitions

Stator

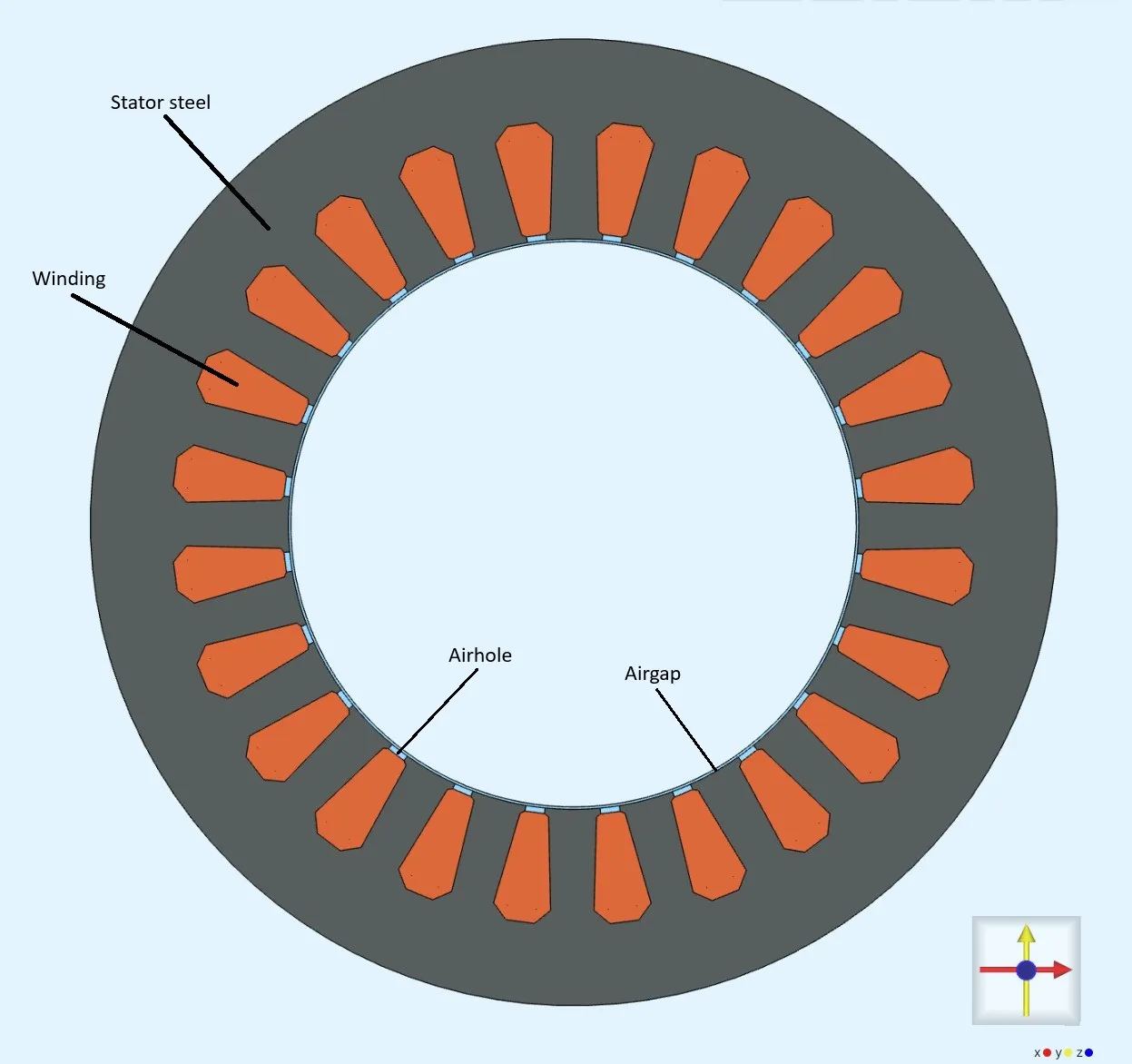

Stator_annotated

Rotor

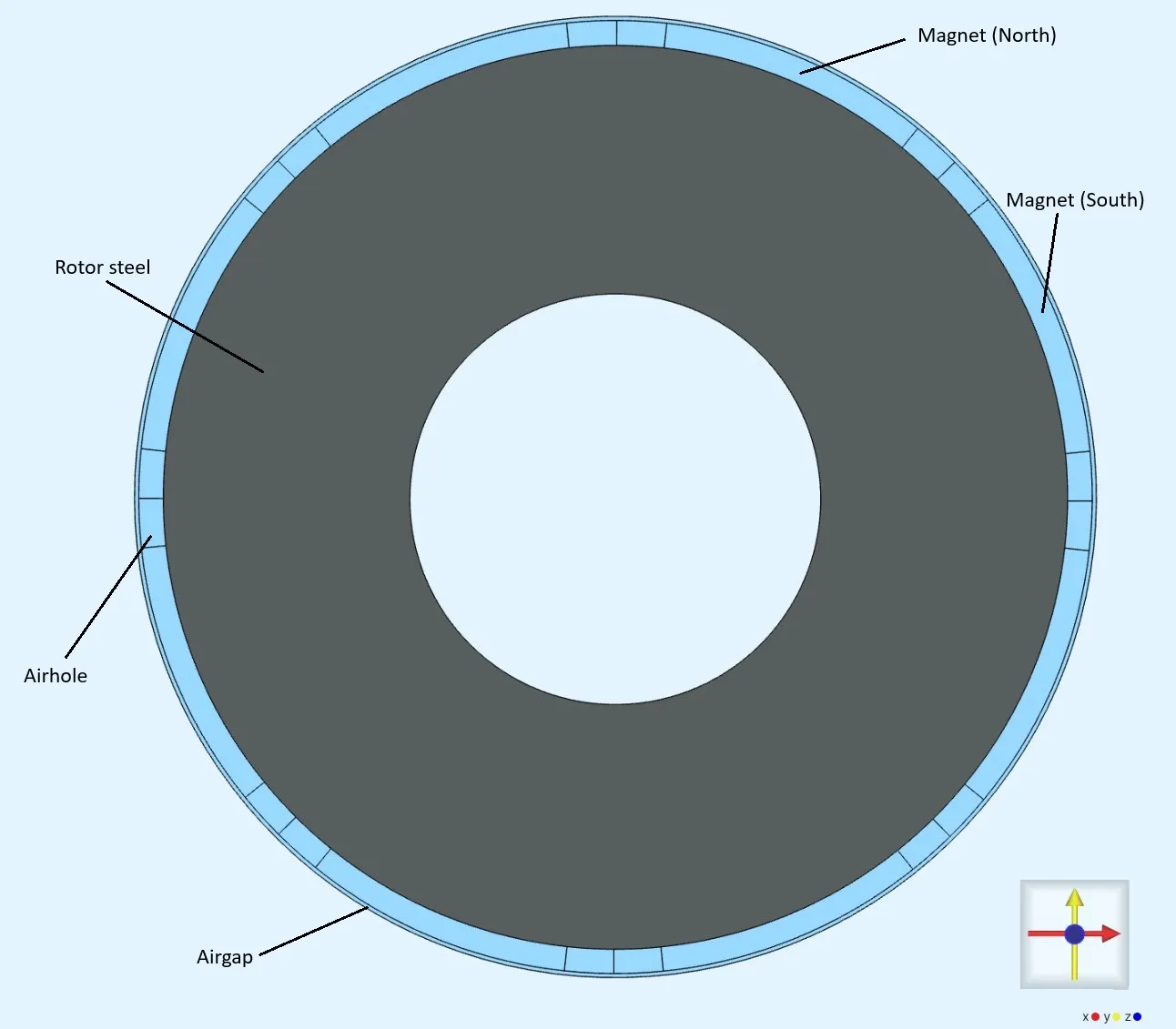

Rotor_annotated

Step 1 – Build the Geometry

  1. Import a .STEP file of the PMSM 2D cross-section. File download link: pmsm-2D-electric-motor.step

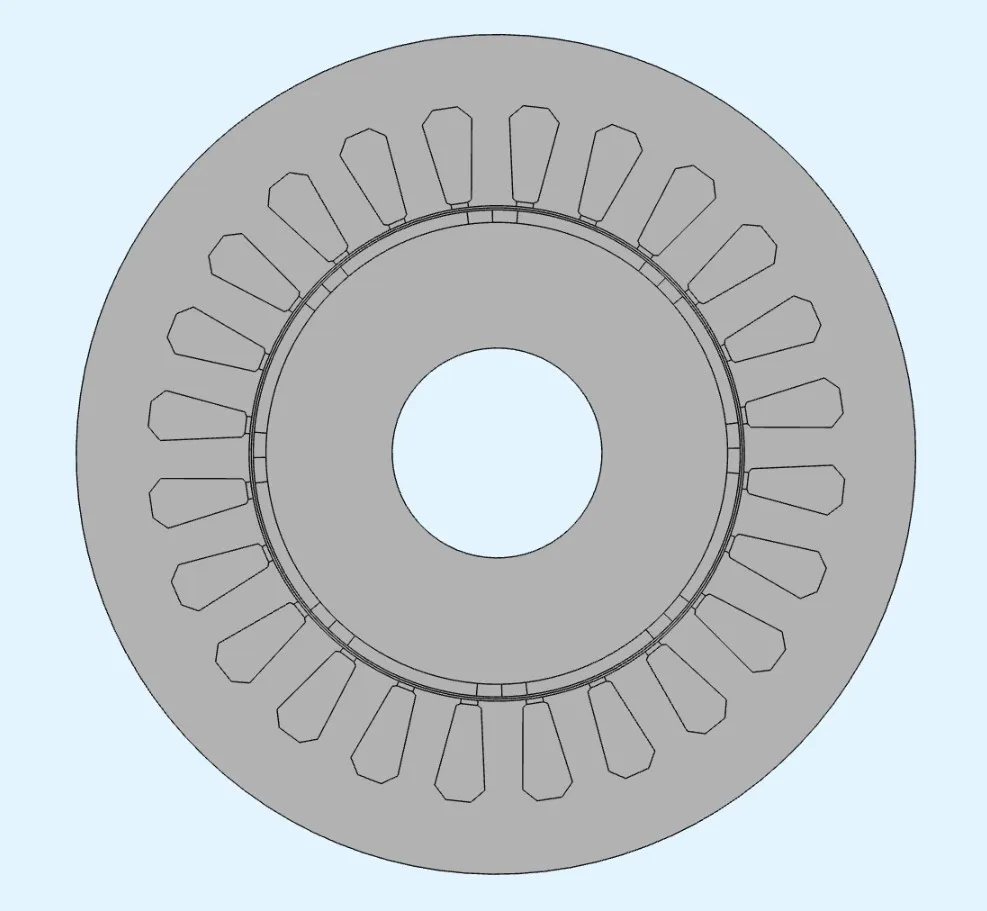

Motor slice

  1. Use Translate to move the rotor outward (e.g., 0.18 m along x-axis) to prepare for separate meshing.

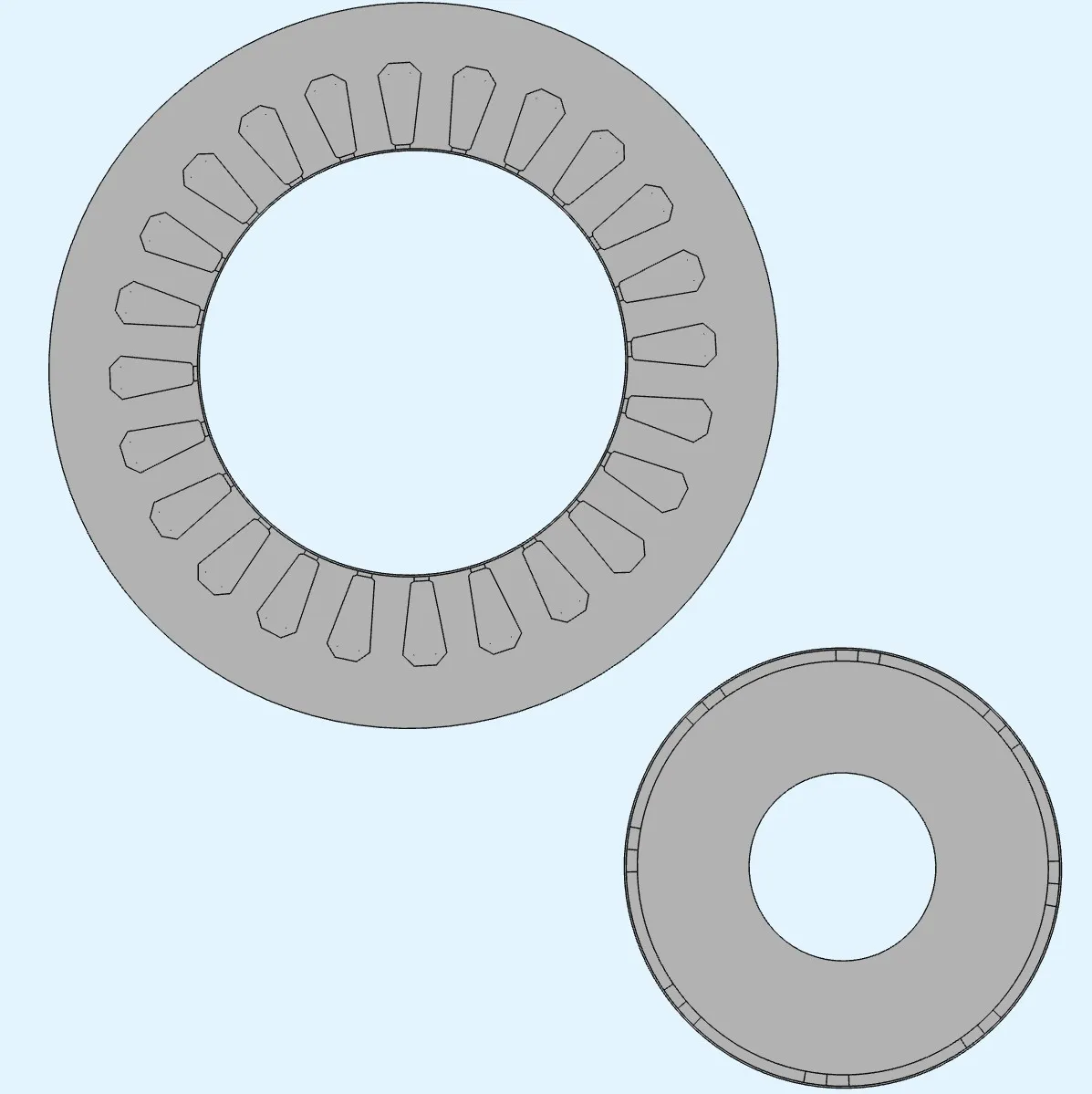

Translation

Lock the geometry and proceed to Physics.


Step 2 – Apply Physics

Define Surface Regions

Go to: Common β†’ Definitions β†’ Region β†’ Surface and define the following surface regions to simplify later steps:

Region NameNotes
rotorAll rotor parts
airgapEach one from rotor and stator side, don’t include airholes
magnet_sAll south pole magnets
magnet_nAll north pole magnets
magnetism_HAll windings
magnetism_phiAll but windings

Assign Materials

PartMaterialNotes
Rotor & StatorCarbon Steel AISI 1020Use linear ΞΌ: 2000 * mu0
Windings (magnetism_H)Copper
Remaining domainsAir

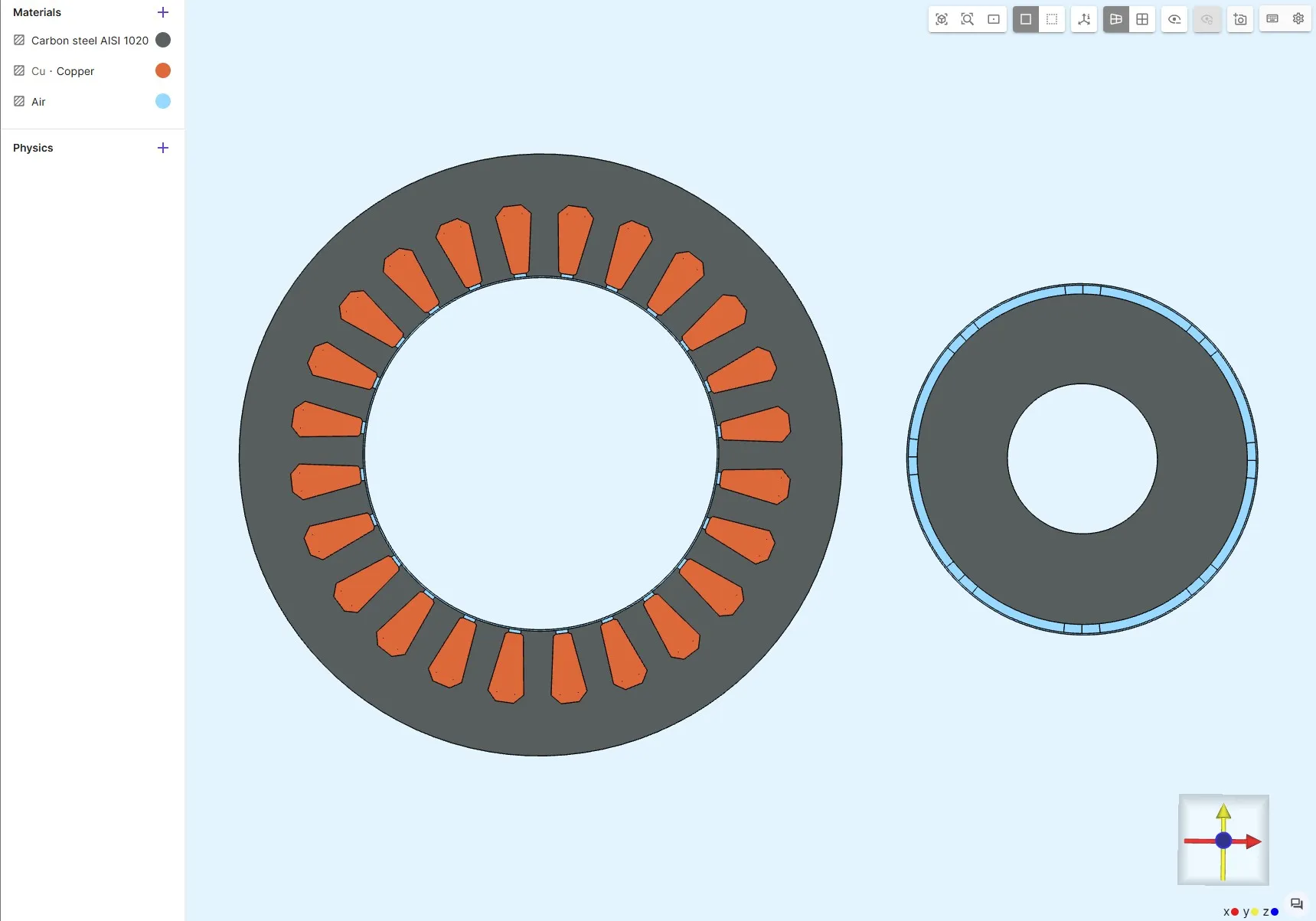

Materials

Define Simulation Variables

Go to Common β†’ Definitions β†’ Variables and add New variables:

NameDescriptionExpression
ICurrent amplitude (A)300
alphaMechanical angle (Β°)0
thetaElectrical angle (Β°)0

Step 3 - Add Magnetism Ο† interactions

  • Apply Magnetism Ο† to all parts except copper windings.

Gauge Constraint

  • Add a constraint to ensure a unique solution.
  • Set value = 0 at a point on the outer edge.

Gauge Constraint

Airgap Continuity

  • Add Continuity condition across rotor-stator interface.
  • Target 1 = stator side curve
    Target 2 = rotor side curve
    Order matters !

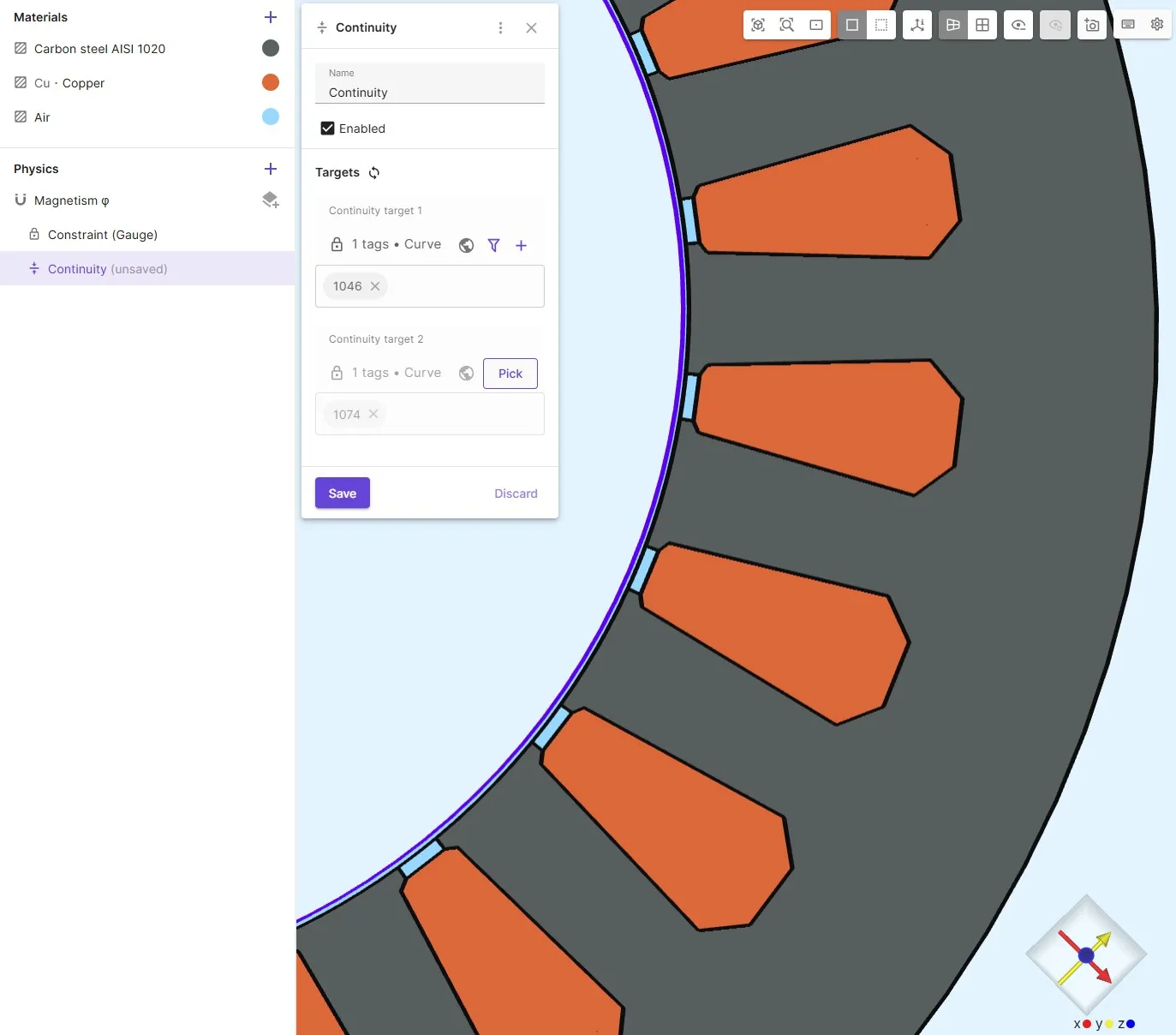

Stator Stator Continuity


Rotor

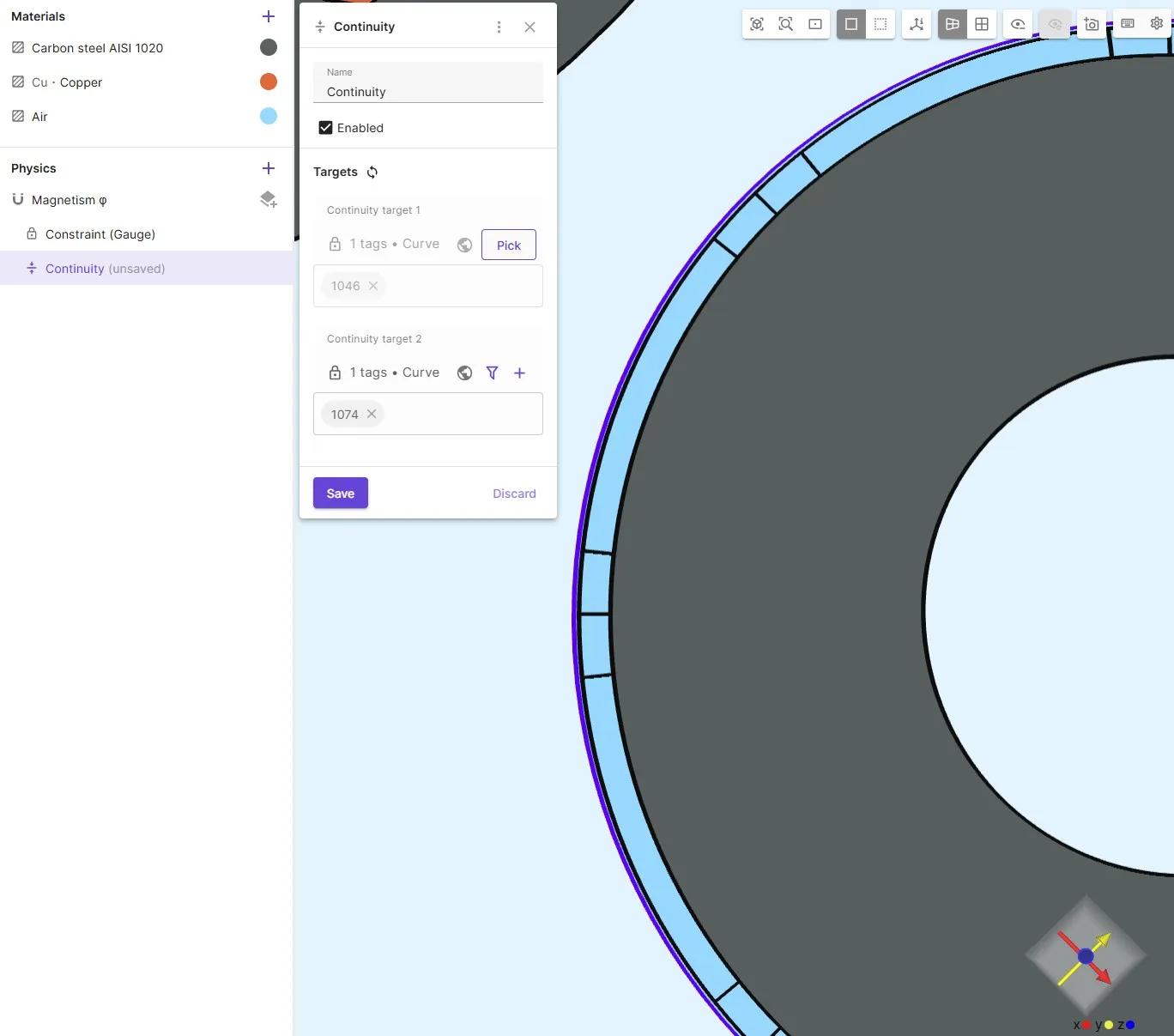

Rotor Continuity


Apply Stator Currents

To generate a rotating magnetic field, apply phase currents with Lump I/V cut to windings:

  1. Number windings 1–24 counter-clockwise starting at +x direction.
  2. Assign regions: wind1, wind2, …, wind24
  3. Assign namespaces: lump1, lump2, …, lump24

For now, set current = 0 β€” we’ll define values later via scripting.

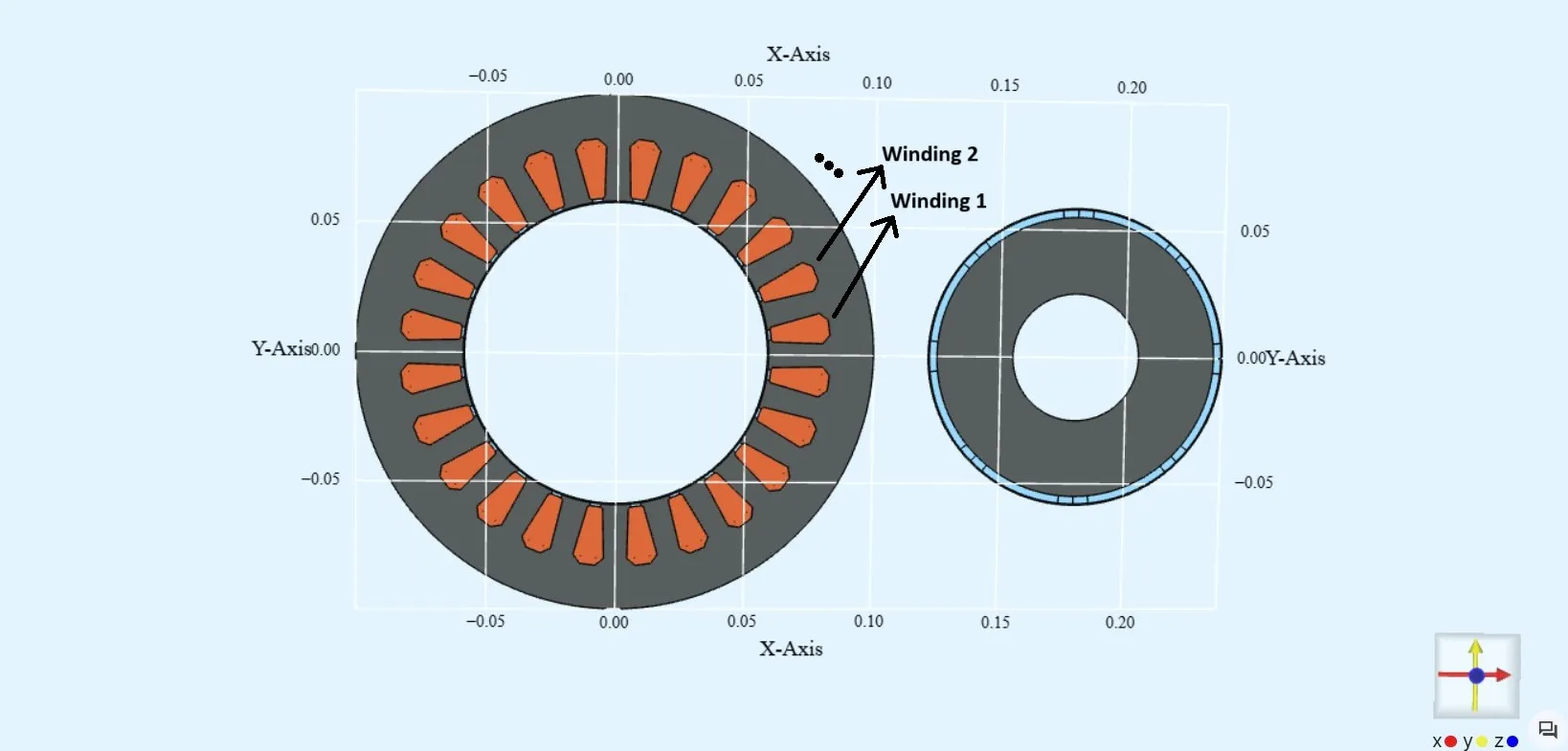

Winding Regions

Add Remanence (Permanent magnets)

  • Add radial magnetization to the permanent magnets using given formulas.

    Note: Ensure that the South pole is facing windings 1, 2, and 3 to create an attractive force between the permanent magnets and the windings. Otherwise the motor is not rotating correctly.

RegionRemanence Vector Expression
magnet_s[0.5*x/sqrt(x^2+y^2); 0.5*y/sqrt(x^2+y^2)]
magnet_n[-0.5*x/sqrt(x^2+y^2); -0.5*y/sqrt(x^2+y^2)]

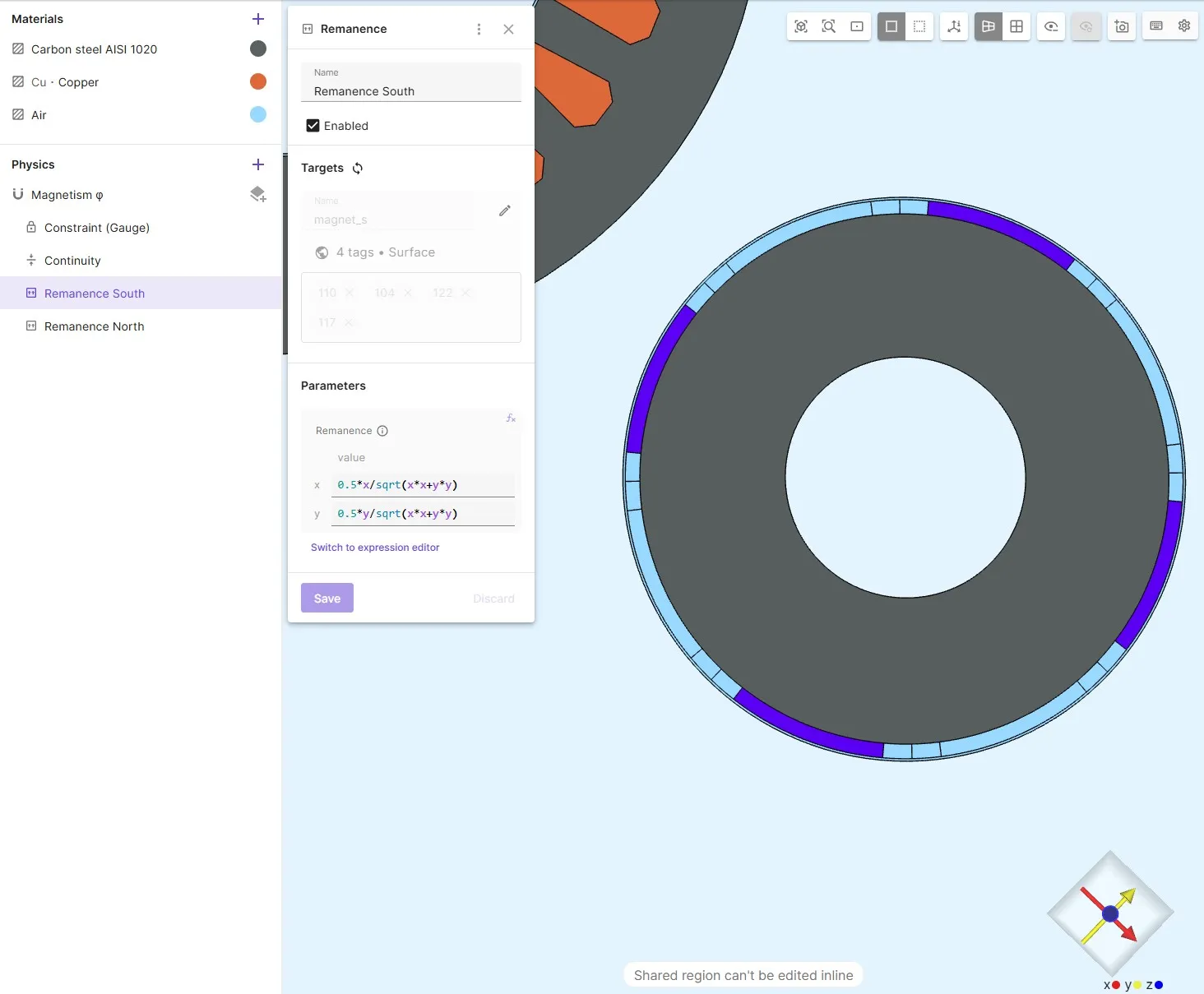

Remanence Setup


Step 4 - Add Magnetism H interactions

Couple the interactions

  • Apply Magnetism H to all windings
  • Couple the Magnetism H with the Magnetism Ο†

Step 5 – Mesh Settings

Mesh Settings

  • Use Curved mesh
  • Max element size: 0.005
  • Add refinement for airgap:
    • Max element size: 0.0001

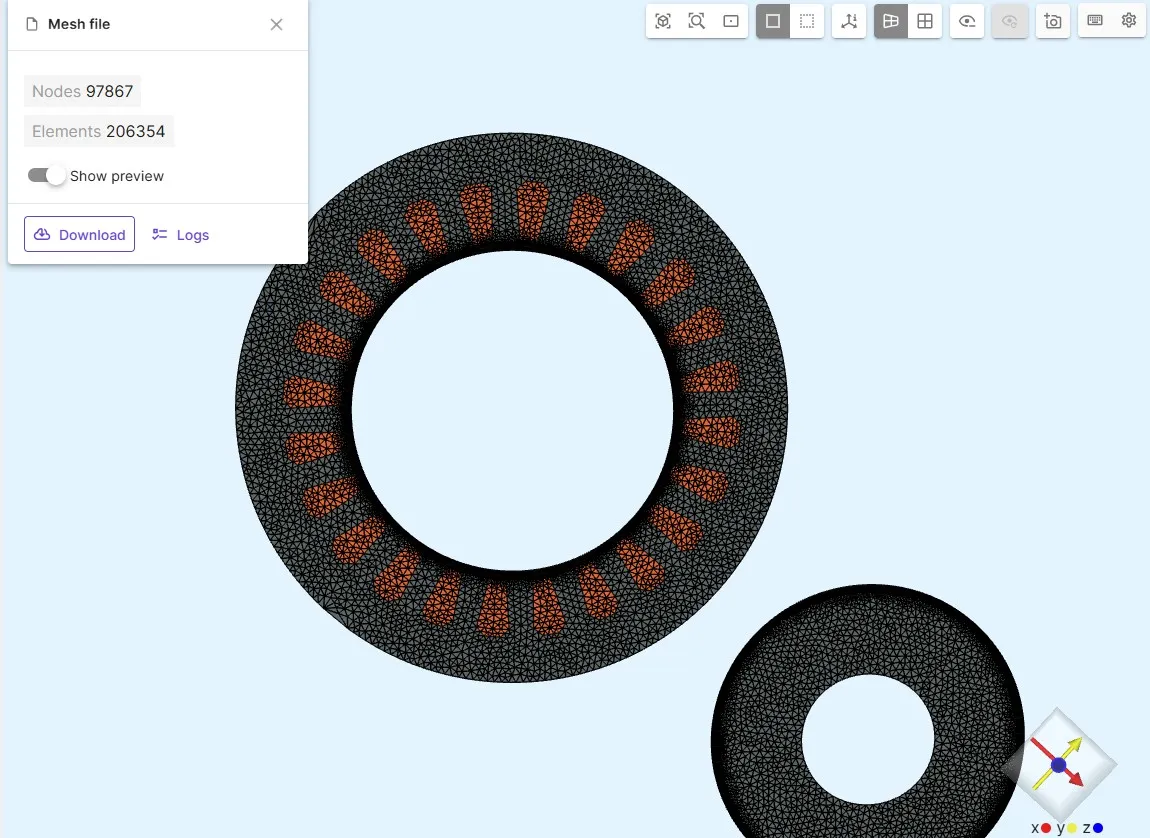

Mesh

Refining the airgap is crucial for accurate torque integration.

Step 6 – Simulation Setup

  • Use Steady-State solver
  • Add physics: Magnetism Ο† and Magnetism H
  • Add generated mesh
  • Keep other settings at default

Step 7 – Modifying Autogenerated Script

To simulate rotor movement dynamically, first reverse the initial static translation, then apply rotation by mechanical angle alpha.

Insert the following lines right after the mesh.mesh.load() call:

# Reverse static shift
translation_x = 0.18
mesh.mesh.shift(reg.rotor, -translation_x, 0.0, 0.0)
# Apply dynamic rotation
mesh.mesh.rotate(reg.rotor, 0.0, 0.0, expr.alpha)

Adapt Field Vectors for 3D Calculations

Although this is a 2D simulation, the solver’s algorithms use 3D vectors. Therefore, we must update some of the default 2x1 vectors to 3x1 vectors by adding a zero to the z-dimension.

First, modify the parameter definitions for the magnetic field components:

df.H = qs.parameter(3, 1) # Magnetic field vector (Hx, Hy, Hz=0)
df.B = qs.parameter(3, 1) # Magnetic flux density vector
df.j = qs.parameter(3, 1) # Current density vector
df.E = qs.parameter(3, 1) # Electric field vector

Next, update the Magnetic field and Magnetic flux density definitions. This involves resizing the gradient of the magnetic scalar potential (fld.phi) and converting the remanence flux density arrays from qs.array2x1 to qs.array3x1.

Magnetic field

df.H.addvalue(qs.selectunion([reg.magnetism_h, reg.magnetism_phi]), -qs.grad(fld.phi).resize(3,1))
df.H.addvalue(reg.magnetism_h, fld.H)
df.H.addvalue(qs.selectunion([reg.magnetism_h, reg.magnetism_phi]), var.Hs)

Magnetic flux density

df.B.addvalue(qs.selectunion([reg.magnetism_h, reg.magnetism_phi]), -par.mu() * qs.grad(fld.phi).resize(3,1))
df.B.addvalue(reg.magnetism_h, par.mu() * fld.H)
df.B.addvalue(qs.selectunion([reg.magnetism_h, reg.magnetism_phi]), par.mu() * var.Hs)
df.B.addvalue(reg.magnet_n, qs.array3x1(-0.5 * qs.getx() / qs.sqrt(qs.getx() * qs.getx() + qs.gety() * qs.gety()), -0.5 * qs.gety() / qs.sqrt(qs.getx() * qs.getx() + qs.gety() * qs.gety()), 0))
df.B.addvalue(reg.magnet_s, qs.array3x1(0.5 * qs.getx() / qs.sqrt(qs.getx() * qs.getx() + qs.gety() * qs.gety()), 0.5 * qs.gety() / qs.sqrt(qs.getx() * qs.getx() + qs.gety() * qs.gety()), 0))

Define Winding Currents

To generate a rotating magnetic field, you must define the sinusoidal currents for each phase of the motor windings. The following code block sets up three-phase currents (A, B, C) with a 60-degree phase shift.

Replace the entire auto-generated Lump I/V cut interactions section with the code below. This assumes the windings were created and named with identical namespaces.

# Define current phases
A = 0
B = 60
C = 120
# Lump I/V cut interactions for all 24 windings
form += port.lump1.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - A) * qs.getpi() / 180.0)
form += port.lump2.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - B) * qs.getpi() / 180.0)
form += port.lump3.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - C) * qs.getpi() / 180.0)
form += port.lump4.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - A) * qs.getpi() / 180.0)
form += port.lump5.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - B) * qs.getpi() / 180.0)
form += port.lump6.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - C) * qs.getpi() / 180.0)
form += port.lump7.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - A) * qs.getpi() / 180.0)
form += port.lump8.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - B) * qs.getpi() / 180.0)
form += port.lump9.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - C) * qs.getpi() / 180.0)
form += port.lump10.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - A) * qs.getpi() / 180.0)
form += port.lump11.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - B) * qs.getpi() / 180.0)
form += port.lump12.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - C) * qs.getpi() / 180.0)
form += port.lump13.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - A) * qs.getpi() / 180.0)
form += port.lump14.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - B) * qs.getpi() / 180.0)
form += port.lump15.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - C) * qs.getpi() / 180.0)
form += port.lump16.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - A) * qs.getpi() / 180.0)
form += port.lump17.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - B) * qs.getpi() / 180.0)
form += port.lump18.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - C) * qs.getpi() / 180.0)
form += port.lump19.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - A) * qs.getpi() / 180.0)
form += port.lump20.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - B) * qs.getpi() / 180.0)
form += port.lump21.I - expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - C) * qs.getpi() / 180.0)
form += port.lump22.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - A) * qs.getpi() / 180.0)
form += port.lump23.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - B) * qs.getpi() / 180.0)
form += port.lump24.I + expr.I * qs.sin((expr.theta + 4.0 * expr.alpha - C) * qs.getpi() / 180.0)

Finally, resize the remaining gradient terms in the Magnetism Ο† and H-Ο† coupling interaction sections to ensure full 3D vector compatibility.

Magnetism Ο†

# Magnetism Ο†
form += qs.integral(reg.magnetism_phi, -par.mu() * (qs.grad(qs.dof(fld.phi)).resize(3,1) - var.dof_Hs) * qs.grad(qs.tf(fld.phi)).resize(3,1))

H-Ο† coupling

# H-Ο† coupling interaction
var.phi_dofs_reg = qs.selectunion([reg.magnetism_phi, reg.magnetism_h])
form += qs.integral(reg.magnetism_h, -par.mu() * qs.grad(qs.dt(qs.dof(fld.phi, var.phi_dofs_reg))).resize(3,1) * qs.tf(fld.H))
form += qs.integral(reg.magnetism_h, -par.mu() * (qs.dt(qs.dof(fld.H)) + var.dt_dof_Hs - qs.grad(qs.dt(qs.dof(fld.phi, var.phi_dofs_reg))).resize(3,1)) * var.tf_Hs)
form += qs.integral(reg.magnetism_phi, -par.mu() * (var.dt_dof_Hs - qs.dt(qs.grad(qs.dof(fld.phi))).resize(3,1)) * var.tf_Hs)
form += qs.integral(reg.magnetism_h, par.mu() * (qs.dof(fld.H) - qs.grad(qs.dof(fld.phi, var.phi_dofs_reg)).resize(3,1) + var.dof_Hs) * qs.grad(qs.tf(fld.phi, var.phi_dofs_reg)).resize(3,1))

Calculate Torque and Define Outputs

Add the following post-processing code after the form.allsolve() command to compute the torque. Two common methods, Arkkio’s method and the Maxwell stress tensor, are included for result verification.

# Arkkio's method
rs = 0.059 # outer radius of airgap [m]
rr = 0.058 # inner radius of airgap [m]
z_length = 0.05 # thickness of motor slice [m]
radius = qs.sqrt( qs.pow(qs.getx(),2) + qs.pow(qs.gety(),2) )
ephi = qs.array3x1(-qs.gety()/radius, qs.getx()/radius, 0)
er = qs.array3x1(qs.getx()/radius, qs.gety()/radius, 0)
Bphi = df.B*ephi
Br = df.B*er
dr = (rs-rr)
magforcedensity1 = (z_length*radius*Br*Bphi/qs.getmu0()/dr)
torque1 = magforcedensity1.allintegrate(reg.airgap, 2)
# Maxwell stress tensor method
leverarm = qs.array3x1(qs.getx(), qs.gety(), 0.0)
T = 1/qs.getmu0() * ( df.B*qs.transpose(df.B) - 0.5*df.B*df.B * qs.eye(3))
magforcedensity2 = qs.on(reg.airgap, T)*qs.normal(reg.airgap).resize(3,1)
torque2 = -z_length*qs.compz(qs.crossproduct(leverarm, magforcedensity2)).allintegrate(reg.continuity_target_1, 2)

To visualize simulation results and assist with debugging, add the following output definitions at the very end of your script.

qs.setoutputvalue("Angle", qs.evaluate(qs.evaluate(expr.alpha)[0]))
qs.setoutputvalue("Torque (Arkkio)", qs.evaluate(torque1))
qs.setoutputvalue("Torque (Maxwell's Stress Tensor)", qs.evaluate(torque2))
# Field outputs
qs.setoutputfield("B", reg.all, df.B, 2)
qs.setoutputfield("j", reg.magnetism_h, df.j, 1)
# Winding current outputs
qs.setoutputvalue("I_phase1", qs.evaluate(port.lump1.I))
qs.setoutputvalue("I_phase2", qs.evaluate(port.lump2.I))
qs.setoutputvalue("I_phase3", qs.evaluate(port.lump3.I))

Step 8 – Run the Simulation Sweep

To analyze the motor’s performance over different rotor positions, run the simulation across a range of mechanical angles.

  • Navigate to Common β†’ Definitions β†’ Variable Overrides β†’ Sweep.
  • Add a sweep for the mechanical angle variable alpha.
  • A typical sweep range is from 0 to 45 degrees (e.g., [0, 1, 2, …, 45]) since the torque cycle repeats every 45 degrees.

Step 9 - Run and Plot Results:

Torque

  • Include the sweep you created as an input to the simulation.
  • Run the simulation over the specified range.
  • Once complete, go to the Plot section.
  • Create a graph plotting the calculated torque as a function of mechanical angle.

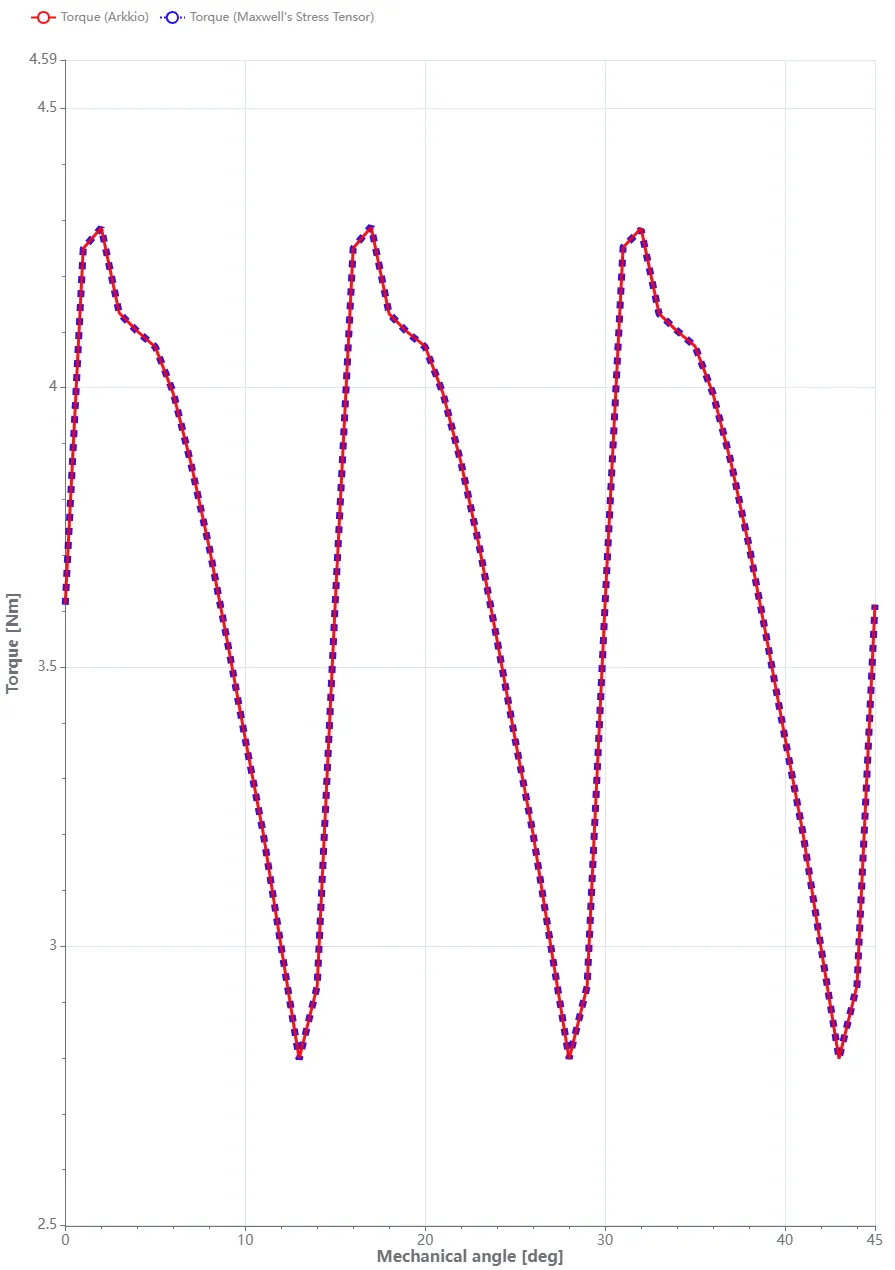

The resulting plot should resemble this:

Example image

You should observe the torque curves from both calculation methods overlaid, oscillating around a mean torque of approximately 3.5 Nm.

These results align well with the reference implementation documented in the Sparselizard documentation.

Magnetic Flux Density

The magnetic flux density B in the core region can be visualized using a simple Glyph plot created via the Visualization module. The plot illustrates the direction and relative magnitude of the flux density, which reaches values under 1 T.

Magnetic flux density in the core

References

Arkkio’s Method for Torque Computation, https://www.anttilehikoinen.fi/research-work/arkkios-method-torque-computation/

This simulation was created based on the provided Sparselizard example, https://github.com/halbux/sparselizard/blob/master/examples/electric-motor-pmsm-2d/main.cpp
