Scripting

What You’ll learn

• Control your simulation code: Switch between autogenerated mode with small customizations and full scripting mode for complete control over the simulation code.
• Advanced script editing: Utilize features like syntax checking, code completion, and code snippets to write and edit your scripts efficiently.
• Organize your code: Fold code blocks, highlight terms, and leverage search & replace functions to keep your script organized and easily maintainable.

Script view

The script editor view comprises of scripts list, extra input files and the main code editor.

If you are working with a regular project, the scripting mode is by default in autogenerated mode. The contents will update whenever you make changes to the project configuration. You can disable some generated code sections and add customized sections between generated sections for small edits without the need to take the script fully under user control.

The supporting generated scripts make the regions, materials and variables defined in the GUI easily available in your custom scripts.

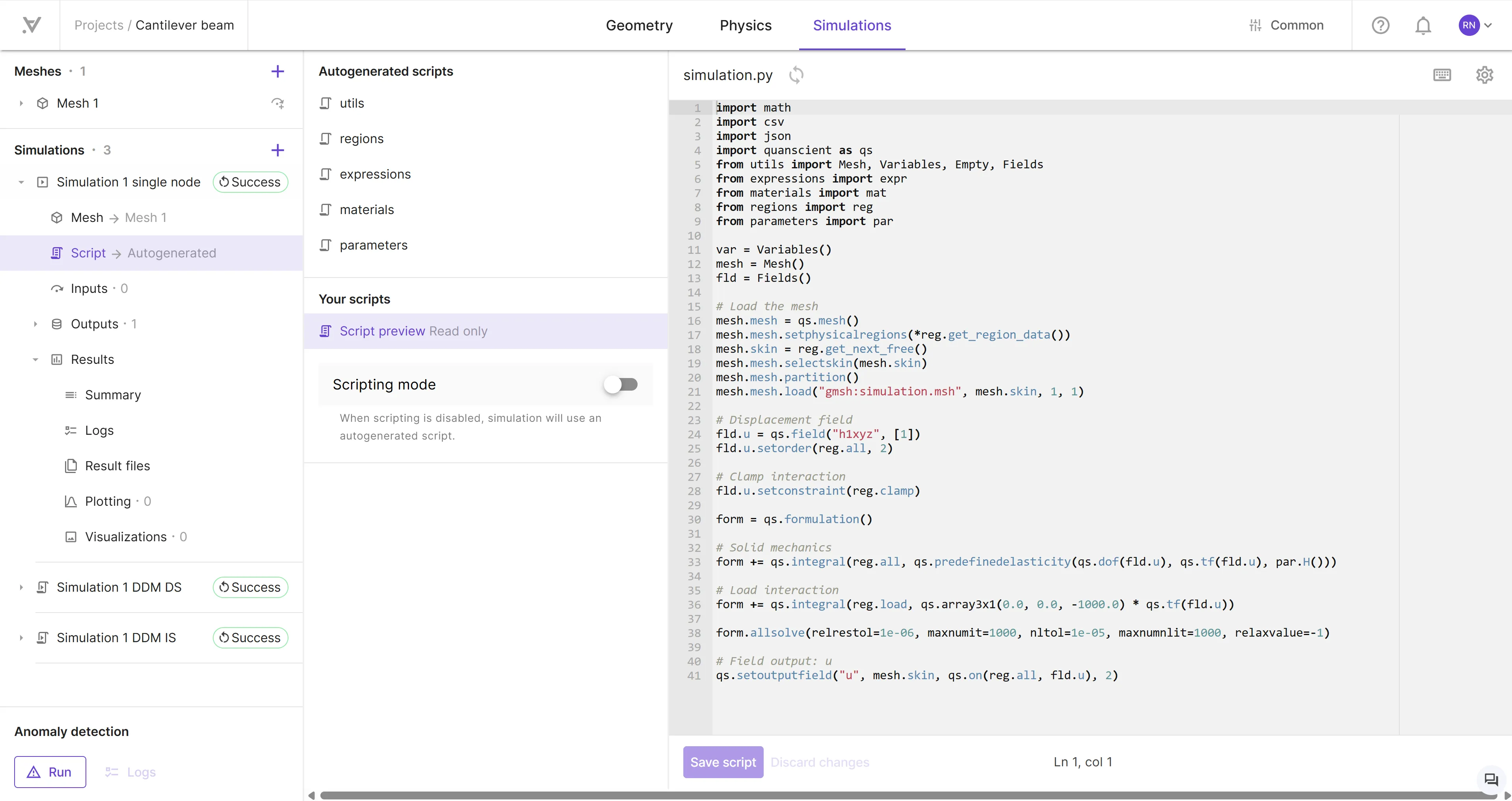

Scripting view in preview mode

You can at any time activate project full scripting mode by toggling it on from Full scripting mode switch.

Once in scripting mode, you take full control over the simulation.py file. The autogenerated support files will still update if you, for example, update your variables or regions.

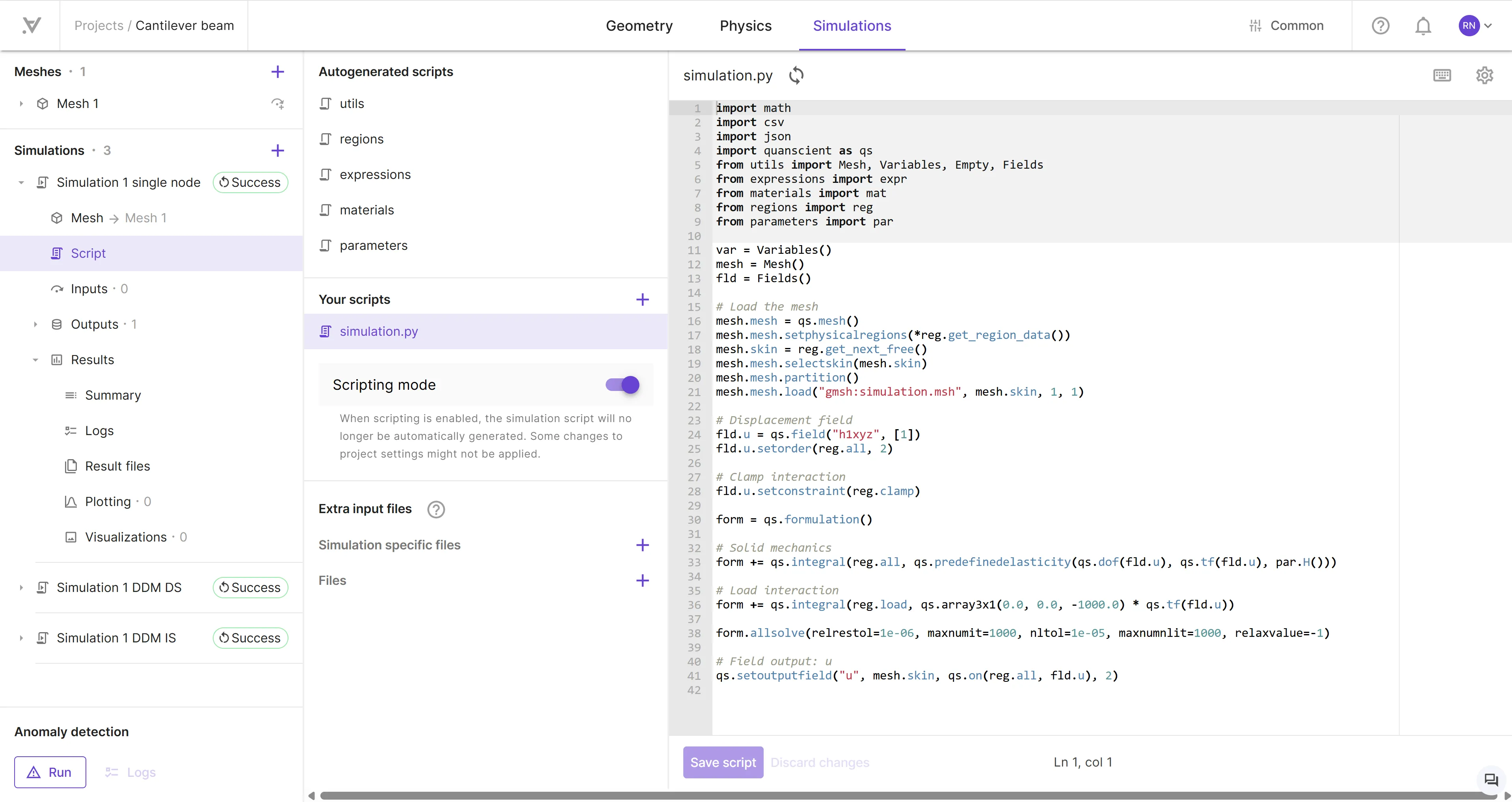

Scripting view with activated scripting mode

The simulation.py file acts as the primary entry point for the simulation and initially contains the generated (if any defined in the GUI) physics. It is also possible to split your simulation into multiple modules by adding new files in “Your scripts” -section. There is also an option of adding from a library of scripts that are provided and you can add any of your own scripts to your organization’s library.

Scripting mode can be disabled at any time which causes any user made changes to be lost. You can also click the Refresh button to update the script with the current project state.

To make modifications to an existing script, select the script from the list and edit the contents as necessary. You can rename a script by double-clicking its name in the list. The autogenerated scripts cannot be modified.

Script sections

When the script is in autogenerated mode, there are options to disable autogenerated sections and add new custom sections between existing sections.

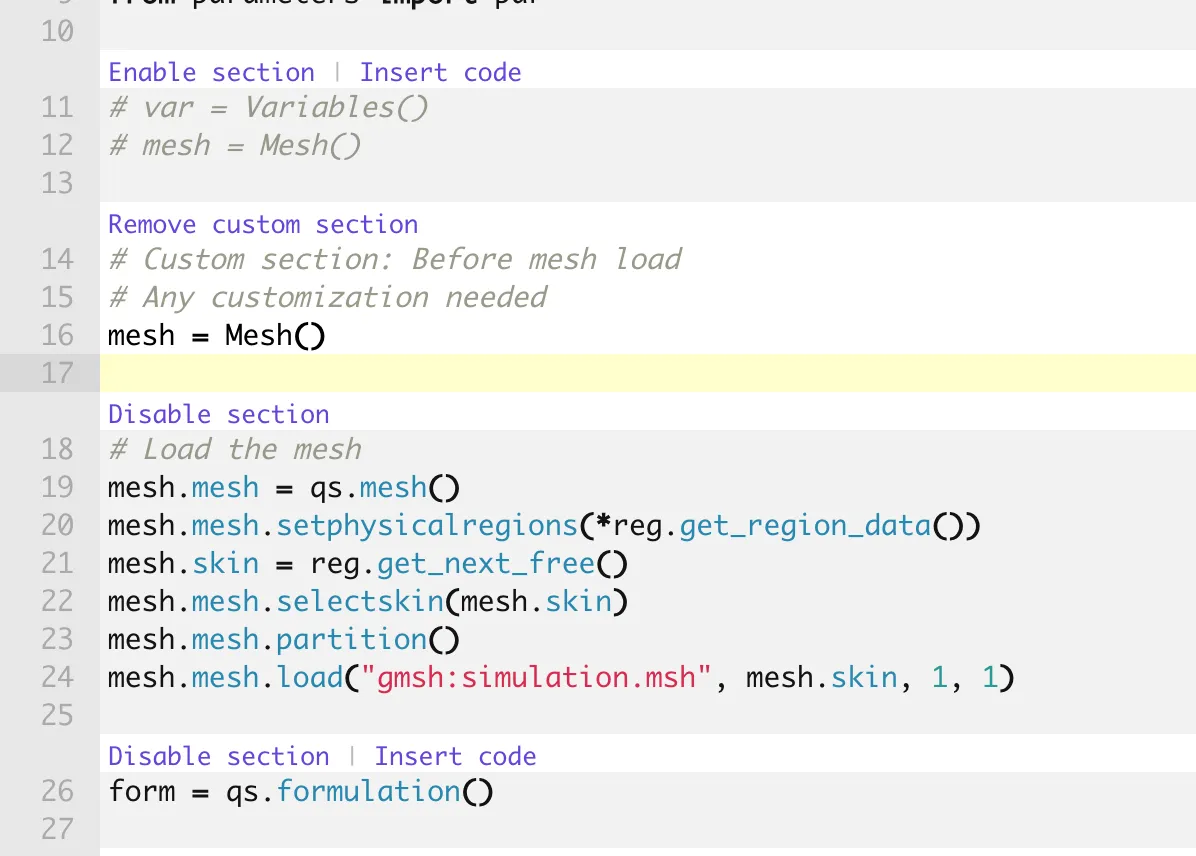

Scripting with disabled and customized sections

This powerful feature can be used as an example to

• only override mesh loading
• add custom interactions not yet available in the GUI
• writing complex outputs

If you do not wish the see the section actions all the time, those can be toggled off from the script editor settings .

Extra input files

Input files such as custom mesh files and CSV files can be utilized within your script. You can upload files to be used only in single simulations or use existing project level shared files by selecting them.

Tip

You can drag a file to the script editor to create simple file read script snippet.

Script library

The script library works in the same way as for variables, functions and materials. There are some predefined items available but an organization can build their own library of commonly used shared scripts.

You can store any user written script to the library from the scripting view or add and edit the library content through library settings views.

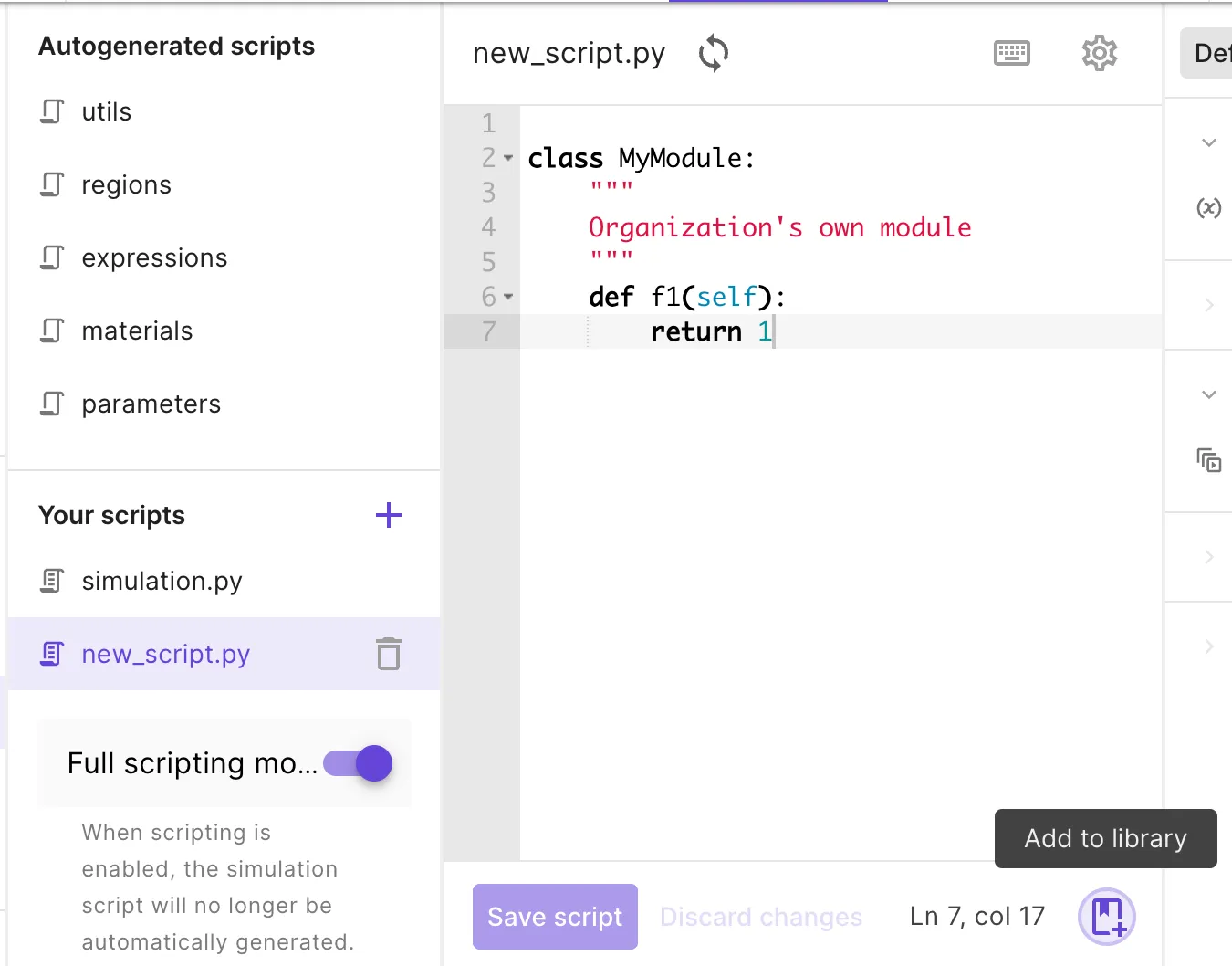

Add script to library

Then in any other simulation, the library scripts can be added.

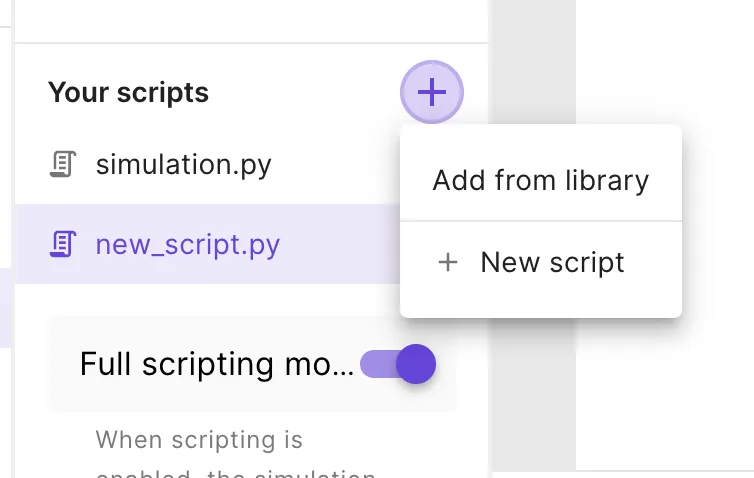

Select "Add from library"

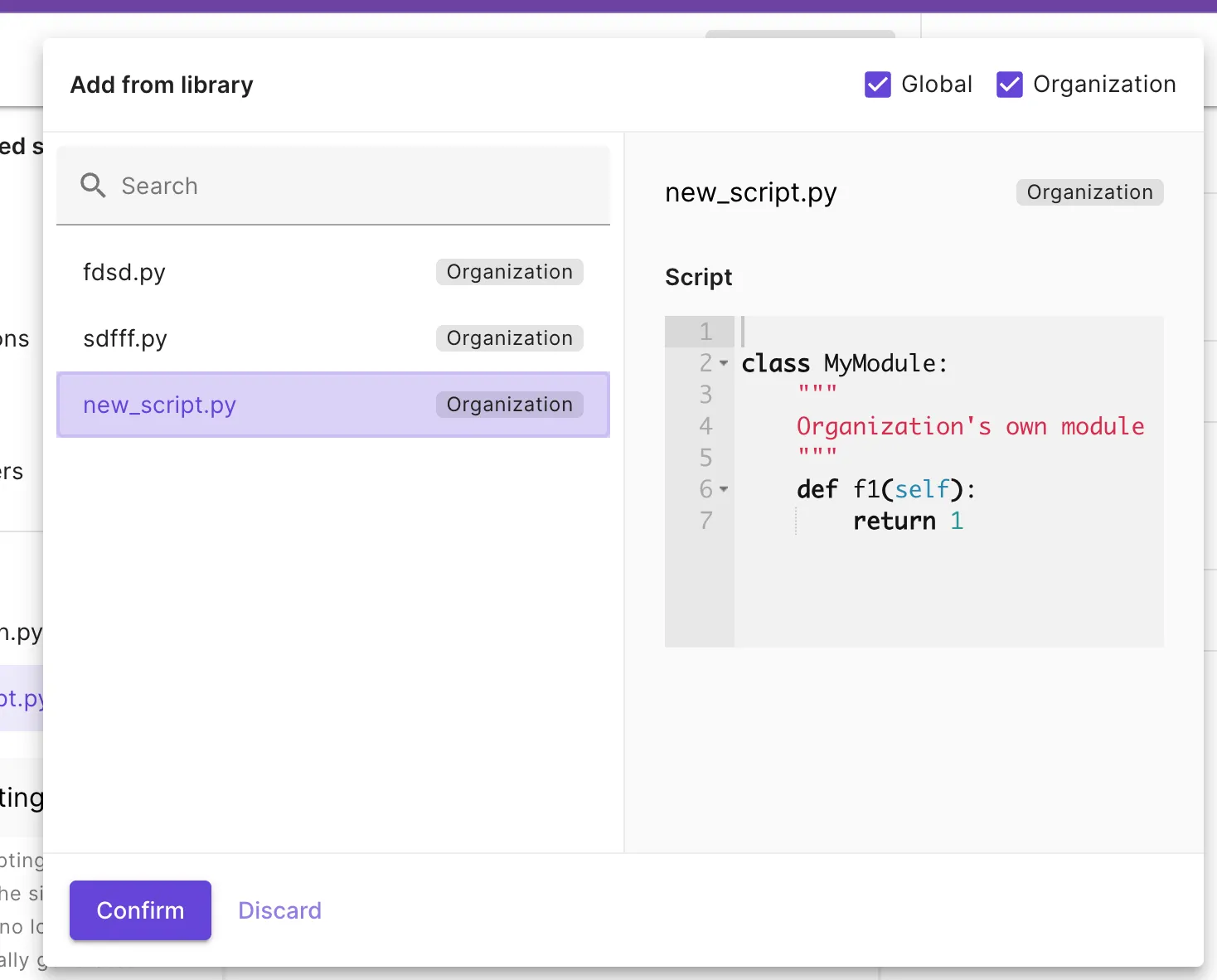

Preview and add library script to simulation

Script editor

Several useful features are available in the script editor to aid the coding process, including syntax checking, which alerts you to any syntax errors in the script. The script autocomplete tool provides easy access to the API reference documentation.

The script autocomplete tool in Quanscient Allsolve supports the following features:

• Hover-over documentation:

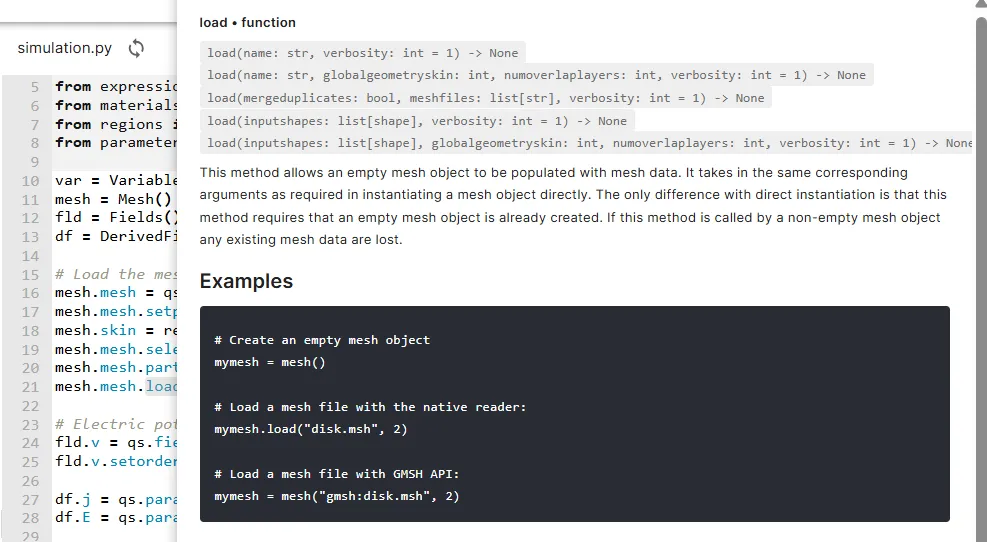

  • Hover over a function name such as load to see its API documentation.
• Intelligent autocomplete:

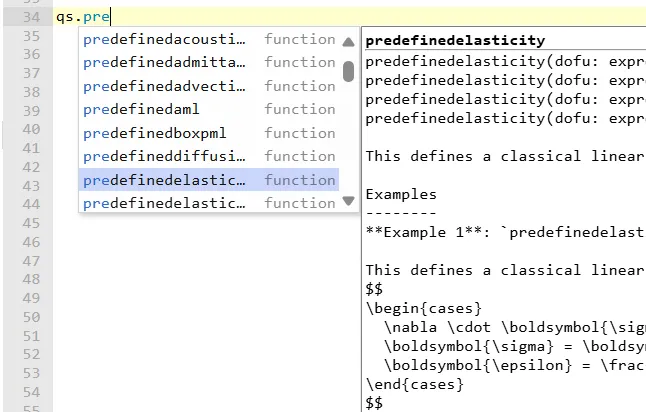

  1. Start writing a new function call, such as qs.pre.
  2. A drop-down-list appears. Scroll down through the autocomplete options with arrow keys until you find qs.predefinedelasticity. The function API documentation is attached to the right.
  3. Press Enter. Your qs.predefinedelasticity function call is now autocompleted.
• Function parameter autocomplete:

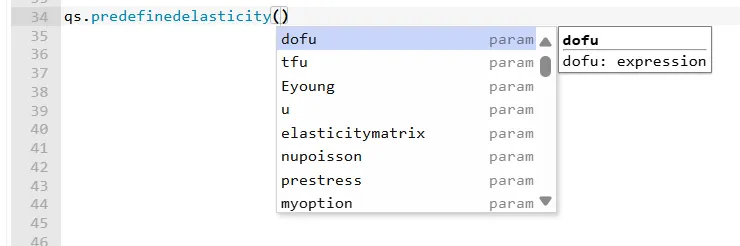

  1. To check possible parameters for the qs.predefinedelasticity function, type parentheses () after the function call.
  2. Inside parentheses, press the ctrl + space or cmd + space key to see autocomplete options for the function parameters.
  3. Cycle through the parameter autocomplete options with arrow keys. Press Enter to autocomplete the highlighted parameter.
• Python snippets:

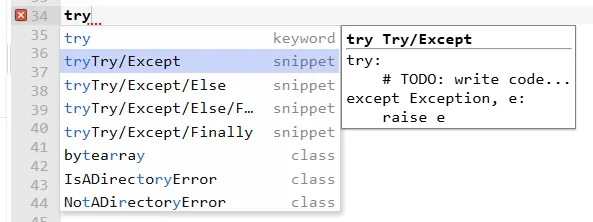

  • To utilize a try/except-snippet for error handling, type try. A drop-down list of snippet options appears. Use the arrow keys to highlight a suitable snippet and press Enter to autocomplete it.

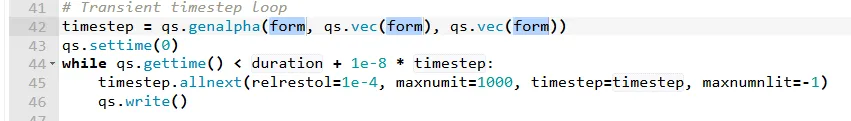

  • To utilize a transient snippet for simulating over time, type tra and press Enter.
    • Some snippets, such as transient, have multiple fields for the user to complete (form, duration, timestep). You can move on to the next by pressing Tab.

More advanced scripting features

• The script editor allows folding code blocks with indentation in the Python code.
• By double-clicking on a word, it can be highlighted across the entire script.
• A search function can be accessed by pressing ctrl + F or cmd + F key while the editor is active. This function allows searching for a specific word in the script. The search results can be navigated by pressing the arrow keys and all results can be highlighted by clicking the All button.
  • While the search bar is active, the replace function can be accessed by clicking the + button. The replace function allows the user to replace one or all occurrences of a specific word with another one.
• Multi-cursor mode can be enabled by pressing the alt or the option key and dragging with the mouse.
• The ctrl + Z or cmd + Z key can be used to undo changes.
  • Press ctrl + shift + Z or cmd + shift + Z to redo undone changes.

Script editor top bar controls

• Click the icon to reset the script back to it’s autogenerated state.
• Click the icon for a cheat sheet of all keyboard shortcuts.
• Click the icon to edit script editor settings, like font size and toggle hover-over documentation.

From simulation script to simulation logs

The print() function can be used to print a variable value from the script to the simulation logs. The Logs can be accessed under Results after running a simulation successfully.
