SC 001 - HTS tape AC loss

In this step-by-step tutorial, AC power loss in a high-temperature superconducting (HTS) tape is simulated.

HTS materials are defined as having a relatively high critical temperature of above 77 K. ¹

Model definition

The tape model is multi-layered, with the superconducting YBCO (Yttrium barium copper oxide) layer taking up only a small part of the tape cross-section. Hastelloy is used as substrate, which forms the thick middle layer of the tape. Copper is used on the outer layer as a stabilizer.

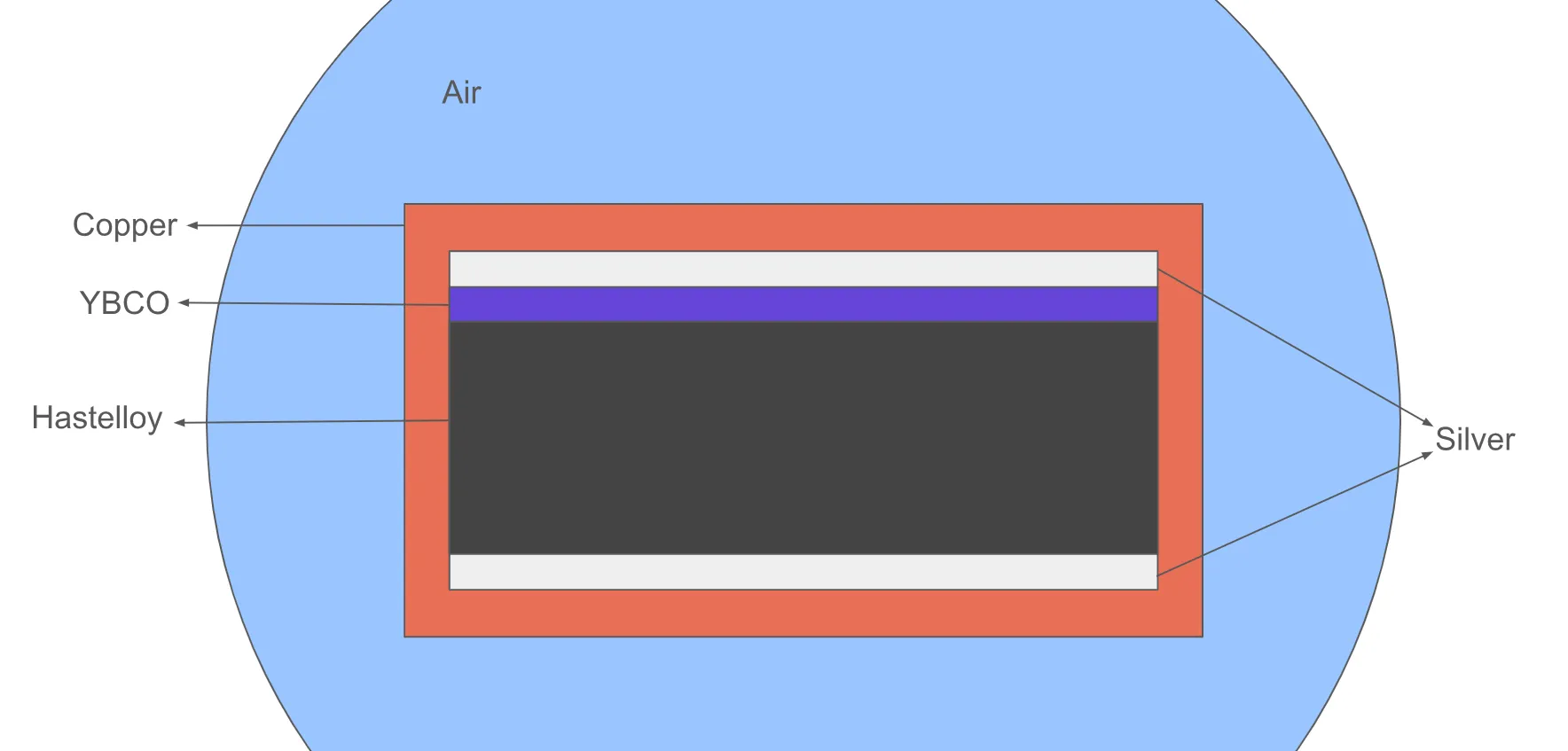

A reference image of the tape cross-section (not to scale) is depicted below.

Model geometry

Element	Dimensions
air cylinder	radius = 8 cm
tape	width = 4 mm, height = 95 μm, length = 1 cm
copper layer	thickness = 20 μm
silver layer	thickness = 2 μm
YBCO layer	thickness = 1 μm
hastelloy layer	thickness = 50 μm
domain	length = 1 cm
YBCO cross-section	$A_{\rm YBCO}$ = $3.96 \cdot 10^{-9}$ m²

Material Data

Magnetic permeability ($\mu$)

• all domains: $\mu_0$

Electric resistivity ($\rho$)

• Hastelloy: $10^{-6}~\Omega$m
• Silver: $10^{-8}~\Omega$m
• Copper: $10^{-8}~\Omega$m
• YBCO:
  • $\rho=\frac{E_c}{J_c}\left(\frac{||J||}{J_c} \right)^{n-1}$
    • $E_c = 100$ μV/m
    • $n=30.5$
    • $J_c=2.85\times 10^{10}$ [A/m$^2$]
    • $I_c=J_c\cdot A_{\rm YBCO}$
  • $E\approx E^0+\frac{\partial E}{\partial J}(J-J^0)$

Inputs - case 1

• Frequency $f=50$ Hz

• Operation current $I_{\rm op}(t) = 0.8 ~ I_c \cdot \sin (2 \pi f t)$

• External magnetic flux density $B_{\rm ext}(t)=0$ [T]

Inputs - case 2

• Frequency $f=50$ Hz

• Operation current $I_{\rm op}(t)=0$ A

• External magnetic flux density $B_{\rm ext}(t) = 20 \cdot \sin (2 \pi f t)$ [mT]

Output results

• Joule losses in the YBCO region, and in the normalconducting region

$$\begin{equation} P_i(t)=\int_{\Omega_{i}}\boldsymbol{E}(t)\cdot \boldsymbol{J}(t)~\rm{d}\Omega \end{equation}$$

• Field visualizations

Step-by-step guide

Here you’ll find a detailed step-by-step tutorial on how to simulate AC Loss in an HTS tape in Quanscient Allsolve.

Step 1 - Create the project and import geometry

1. Create a new project and name it as HTS tape demo, for example.

2. Import the model as a mesh file. You can download the file here: htstape.msh

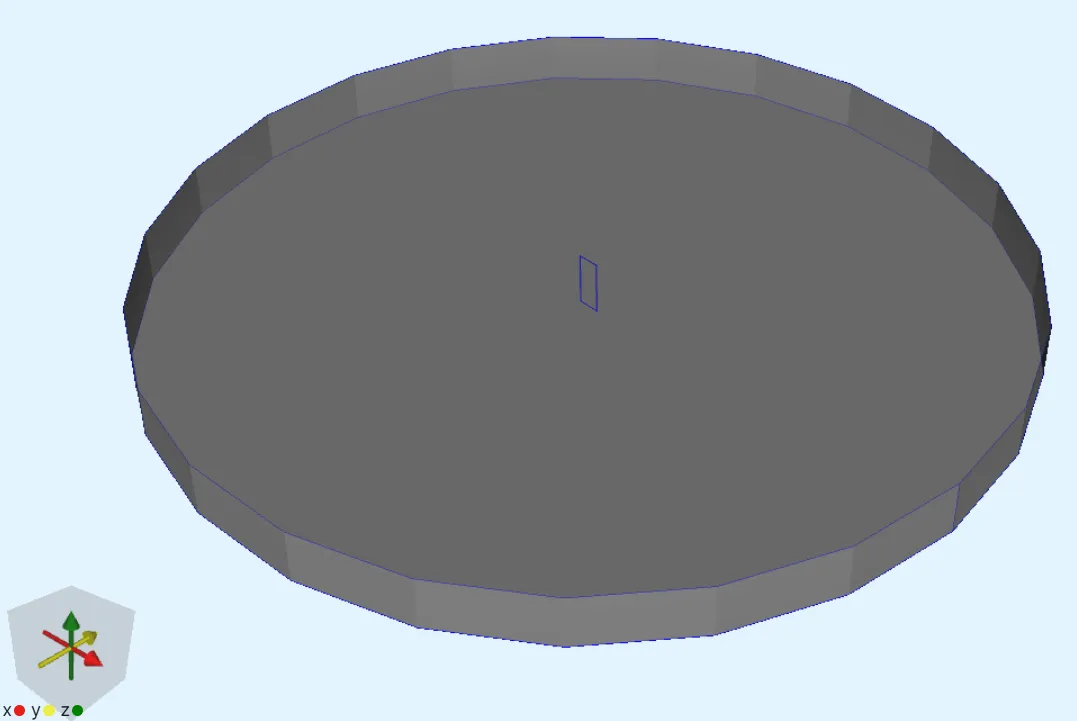

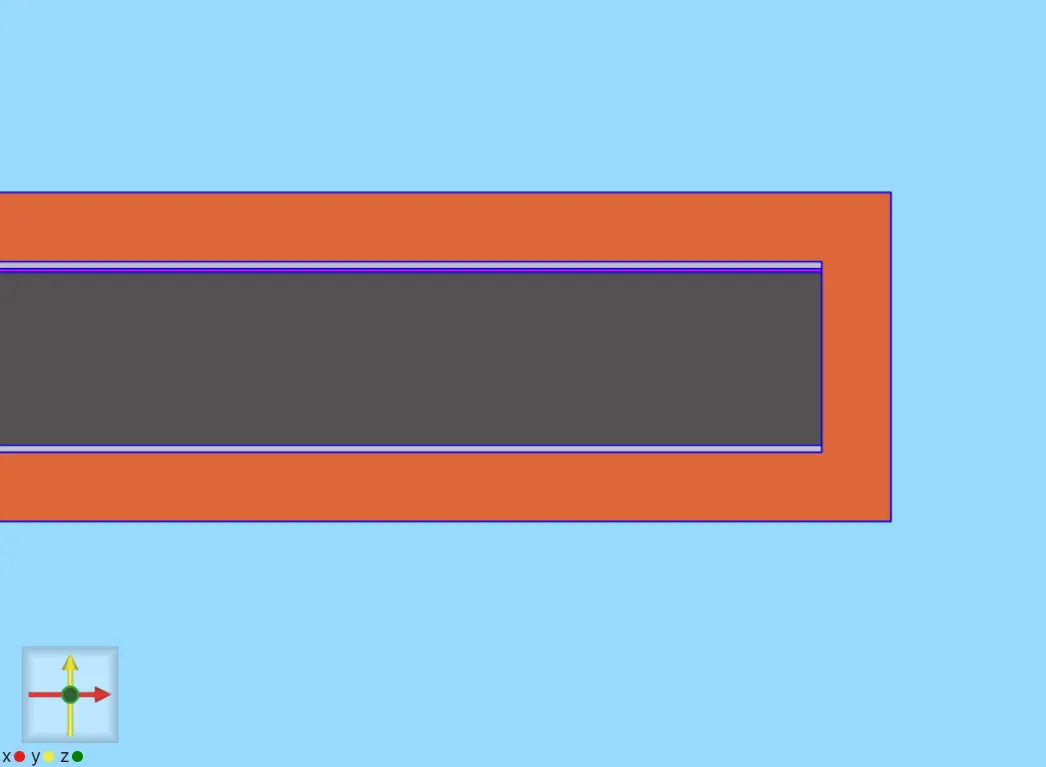

The air cylinder takes up most of the model view, with the outline of the small tape box volume visible in the middle.

Step 2 - Define shared regions

1. Go to the Common sidebar.

2. Define shared regions:

   Region name	Region type	Target tags
   air	Volume	5
   copper	Volume	6
   silver	Volume	1, 4
   hastelloy	Volume	2
   ybco	Volume	3
   normalconducting	Volume	1, 2, 4, 6

Target picking with tags

It’s easiest to define these shared regions by picking tags directly, as clicking thin tape layers in the model view can be difficult.

Step 3 - Define the materials

1. Go to the Physics section.

2. Assign the Air, Silver, Copper and YBCO materials to their corresponding shared regions.

3. In Silver and Copper material properties, change Electric conductivity to 1e8.

4. Create the new material Hastelloy and add its properties:

   Material name	Color	Target
   Hastelloy	Dark grey	hastelloy region

   Material property	Value
   Electric conductivity	1e6
   Magnetic permeability	mu0

5. (Optional) Change the YBCO material color to purple in order to distinguish it from hastelloy.

Finished materials:

Step 4 - Define variables & functions

Go to the Common sidebar.

1. Edit predefined variables:

   Name	Updated expression
   YBCO_Jc	2.85e10
   YBCO_n	30.5

2. Define new variables:

   Name	Description	Expression
   freq	Frequency [Hz]	50
   Bext	External magnetic flux density [T]	0
   Aybco	YBCO layer cross-section area [m^2]	3.96e-9
   Iop	Operating current [A]	0.8 * YBCO_Jc * Aybco * sin(2 * pi * freq * t)

Step 5 - Define physics and boundary conditions

Go to the Physics section.

Add the Magnetism φ and Magnetism H physics before moving on to set up their interactions.

Physics 1 - Magnetism φ

1. Set the Magnetism φ target:

   Physics	Target
   Magnetism φ	air region

2. Add a constraint interaction to Magnetism φ:

   Interaction name	Interaction type	Target	Value
   Constraint	Constraint	point at the outer edge of the air cylinder (point 26)	0

3. Add an External field interaction to Magnetism φ:

   Interaction name	Interaction type	Target	Value

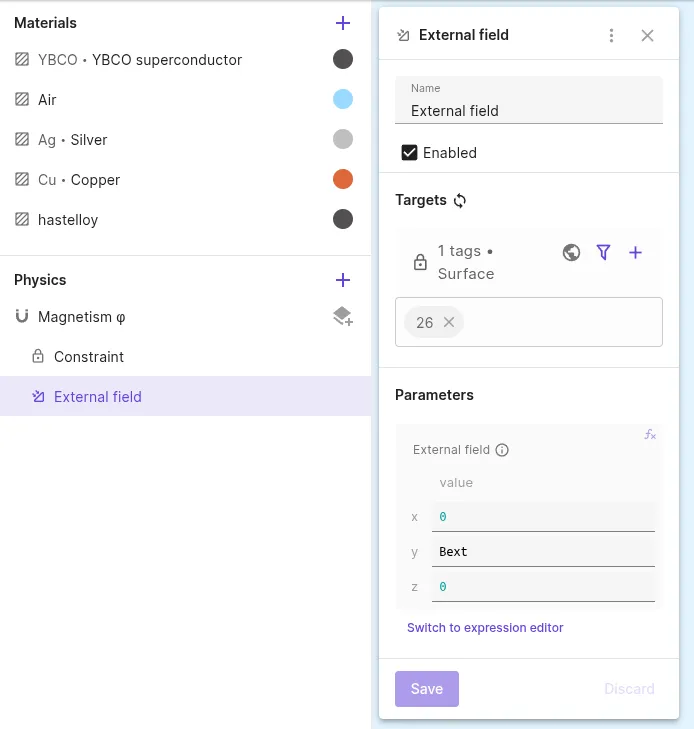

   External field	External field	outer surface of the air cylinder (surface 26)	[0; Bext; 0]



4. Add a Lump I/V cut interaction to Magnetism φ:

   Interaction name	Interaction type	Target	Actuation mode	Current

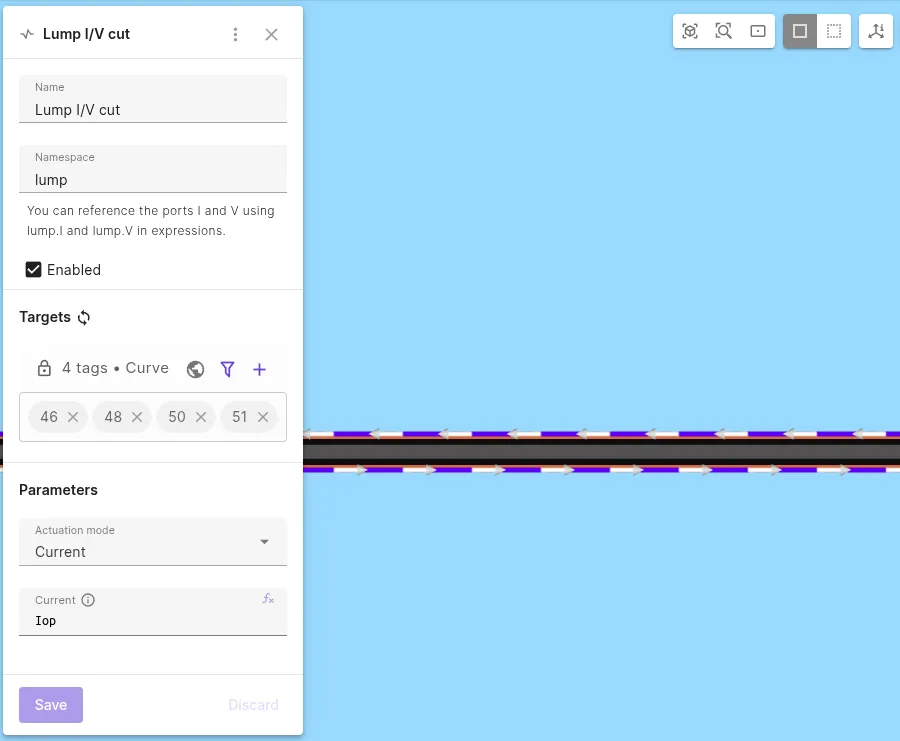

   Lump I/V cut	Lump I/V cut	a loop around the tape cross-section (curves 46, 48, 50, 51)	Current	Iop



Physics 2 - Magnetism H

1. Set the Magnetism H target:

   Physics	Target
   Magnetism H	All volumes, except the air cylinder (1 - 4, 6)

2. Add H-φ coupling to Magnetism H.

Step 6 - Select simulation options

1. Go to the Simulations section.

2. Add a new simulation.

3. Set Analysis Type to Transient.

4. Select timestepping options:

   Timestep algorithm	Start time [s]	End time [s]	Timestep size [s]
   Implicit Euler	0	1/freq	1/freq/50

5. Select the imported mesh as the mesh for your simulation.

Step 7 - Add simulation outputs

1. Add custom value outputs for joule loss integrals:

   Name	Output expression
   YBCO loss	integrate(reg.ybco, transpose(E)*j, 4)
   Normalconducting loss	integrate(reg.normalconducting, transpose(E)*j, 4)

2. Add a custom value output for net current:

   Name	Output expression
   Itot	lump.I

3. Add the current density j field output.

4. Toggle Skin only on the j field output.

Step 8 - Modify the simulation script & run

1. Open the simulation Script.

2. Enable Scripting mode.

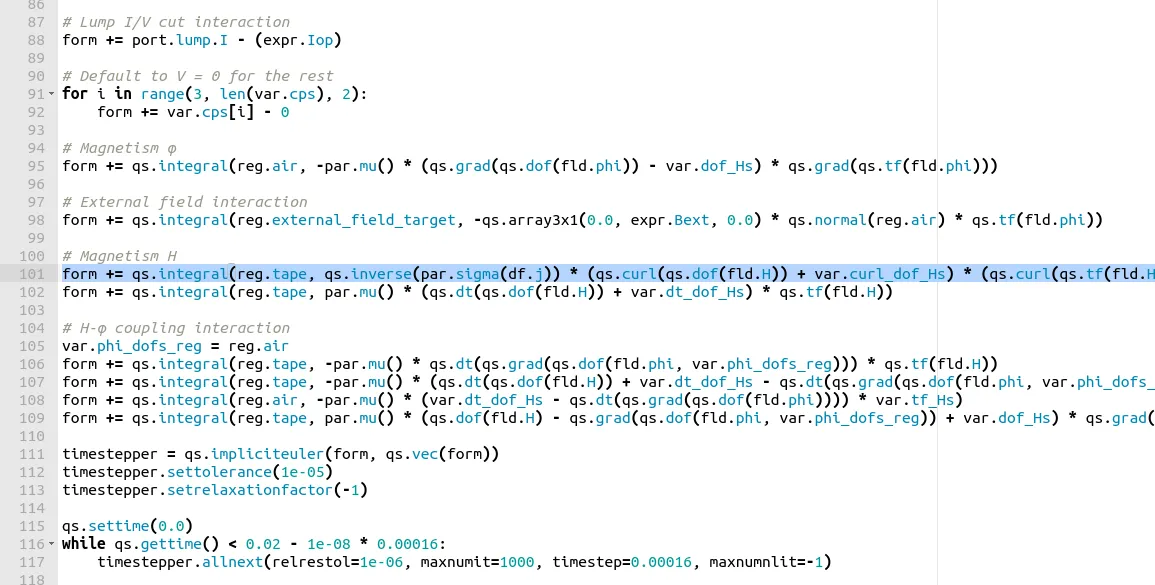

3. Replace the first line of the autogenerated magnetism H formulation with the following Newton-Raphson linearization:

   rho = 1 / par.sigma(df.j)
   dedj = rho * qs.eye(3) + (expr.YBCO_n - 1.0) * rho / qs.max(df.j * df.j, 1e-40) * df.j * qs.transpose(df.j)
   dofe = rho * df.j + dedj * (qs.curl(qs.dof(fld.H)) + var.curl_dof_Hs - qs.curl(fld.H) - var.curl_Hs)
   form += qs.integral(reg.ybco, dofe * (qs.curl(qs.tf(fld.H)) - var.curl_tf_Hs))
   form += qs.integral(reg.normalconducting, qs.inverse(par.sigma(df.j)) * (qs.curl(qs.dof(fld.H)) + var.curl_dof_Hs) * (qs.curl(qs.tf(fld.H)) - var.curl_tf_Hs))



   Linearization

   The Newton-Raphson linearization helps in speeding up convergence of nonlinear systems, leading to faster runtimes. In some cases, the nonlinear system does not converge at all with fixed point iteration unless linearized.

4. Save the script.

5. Run the simulation.

Step 9 - Plot & visualize results

Add plots for value outputs and visualizations for field outputs.

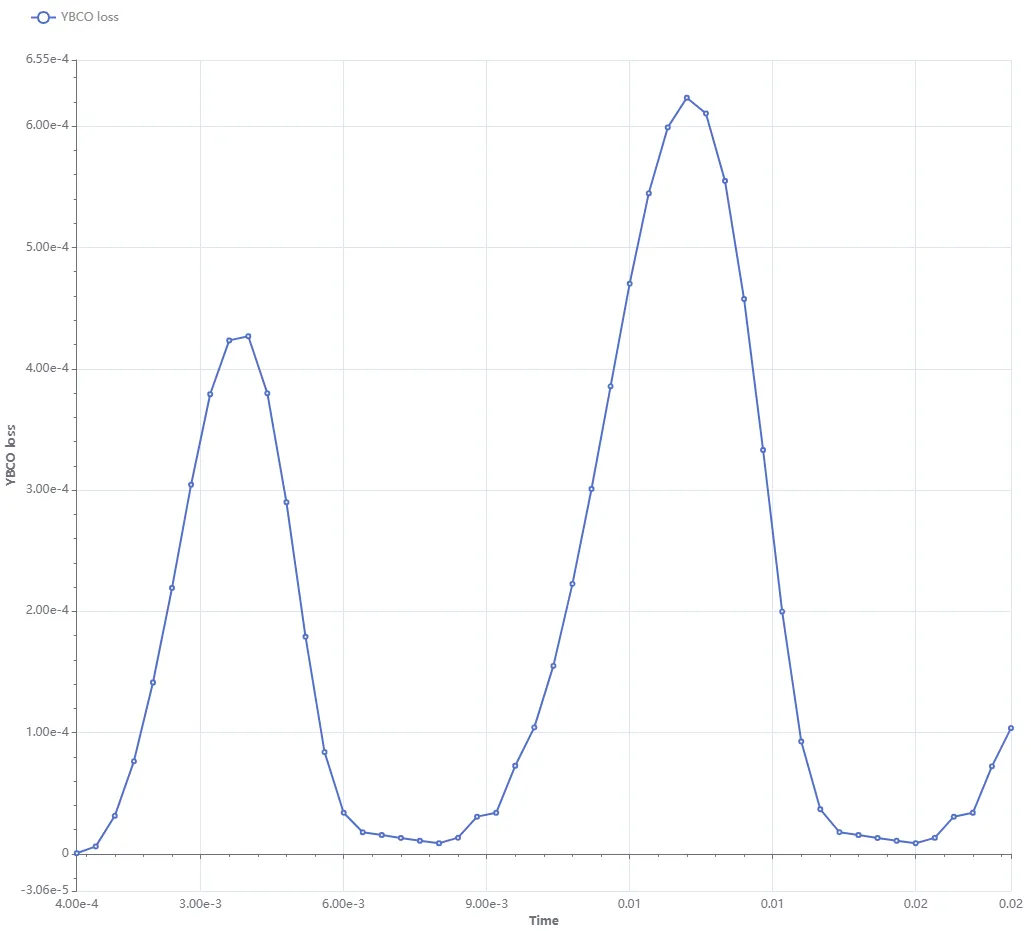

• The YBCO loss forms two distinct peaks:



• The Normalconducting loss has a similar shape but at a much smaller scale (see Y axis):



Plotting during simulations

To plot value outputs in real time, you can add a plot at the very start of your simulation!

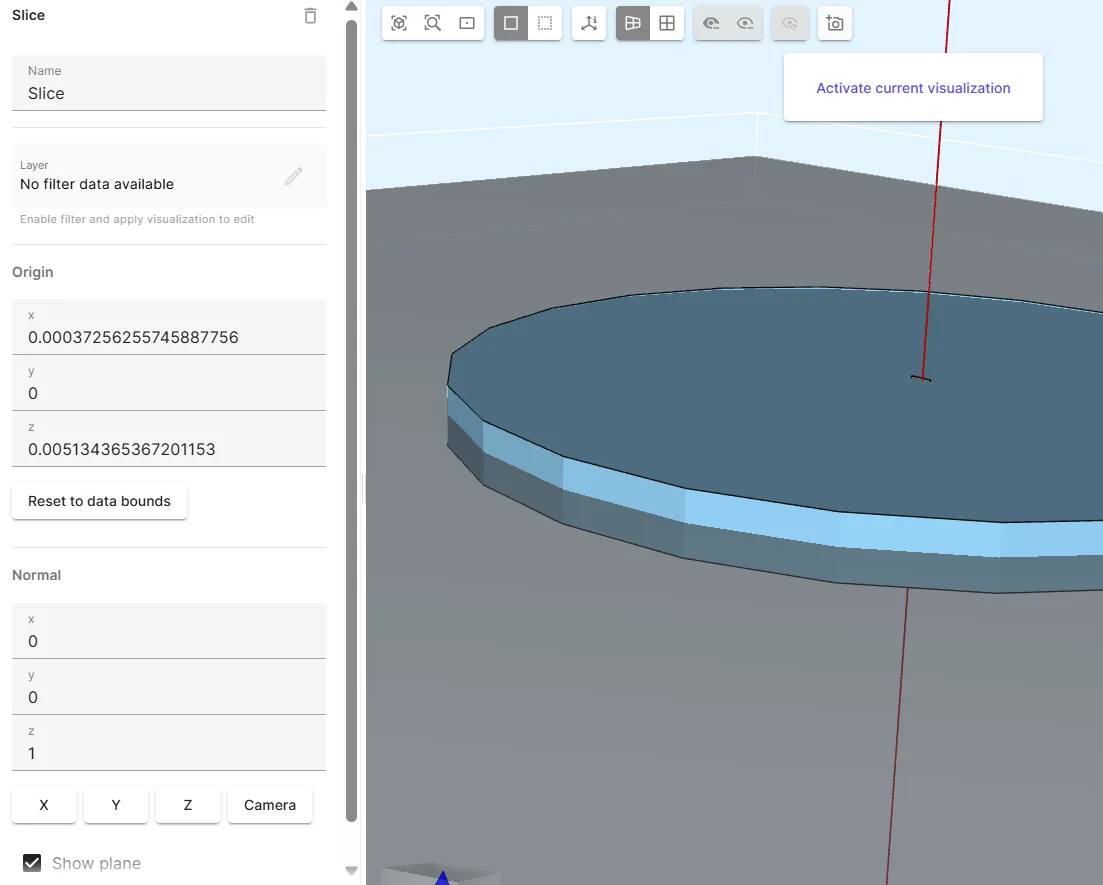

• To visualize the j field, take a slice at the tape and air cylinder mid-section:

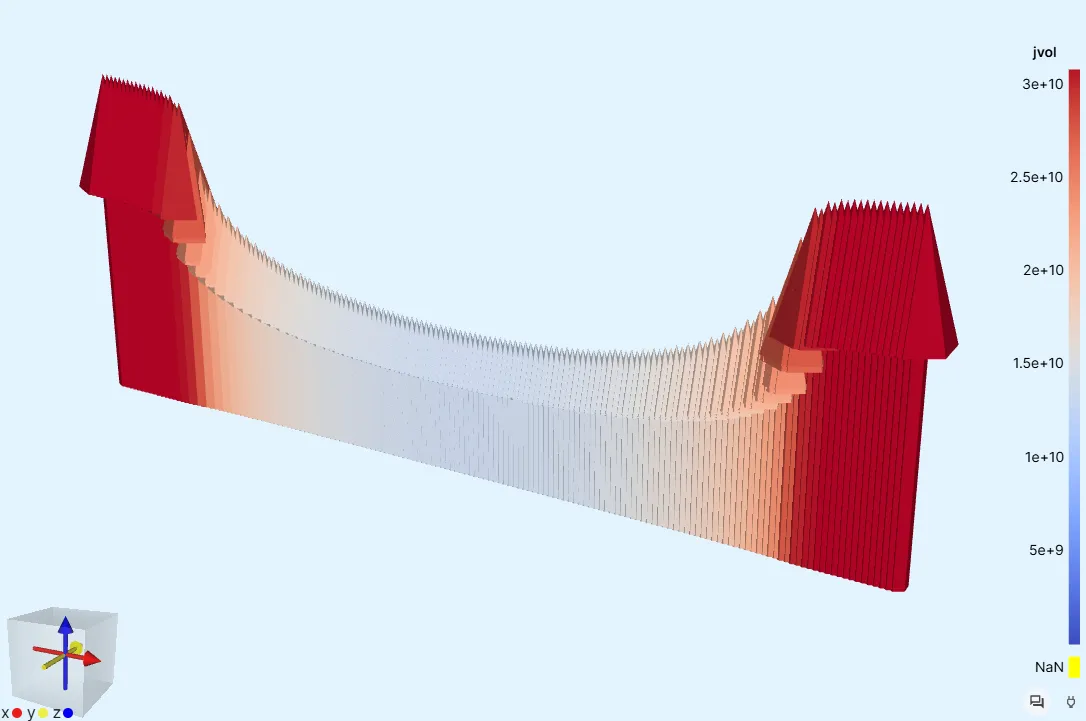

• Add a glyph filter on the same visualization. Check the Summary to choose a suitable timestep to visualize. Timestep 33/66 was rendered here:

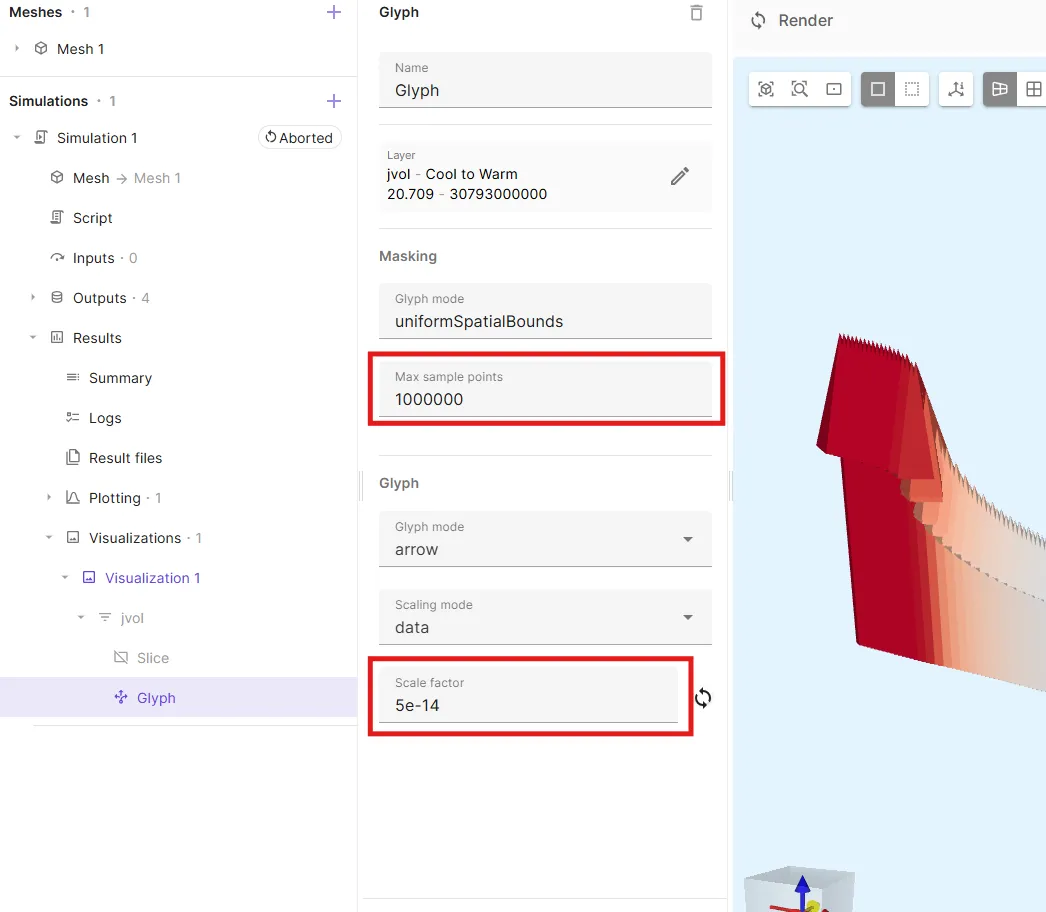

Glyph settings

• If there are too few glyph arrows, increase Max sample points.
• If glyph arrows are too large, decrease Scale factor.
